Same model may have multiple batches, images only for reference.

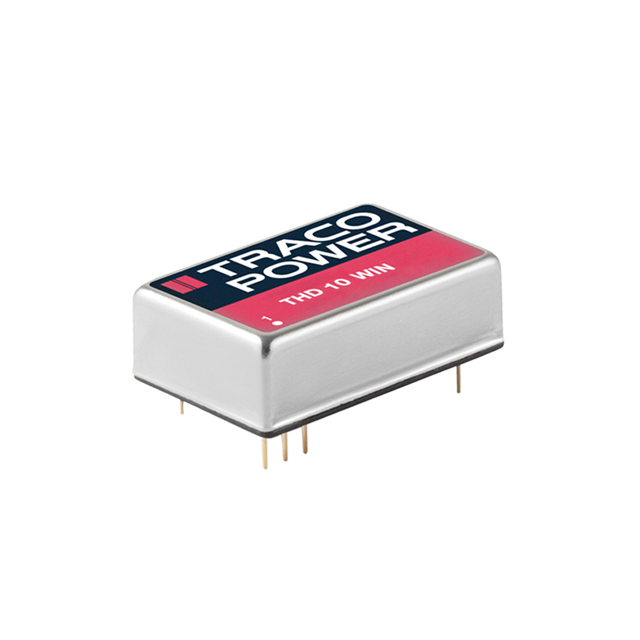

THD 10-2422WIN Real Image
Same model may have multiple batches, images only for reference.

THD 10-2422WIN

Part No THD 10-2422WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 9V - 36V Input
Datasheet
THD 10-2422WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 416mA, 416mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 24-DIP Module, 9 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number THD 10
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-3078,THD10-2422WIN,THD10-2422WIN-ND,7613441019345,THD 10-2422WIN-ND
Standard Package 10
Win Source Part Number 1335880-THD 10-2422WIN
Ultra Librarian 3D Model Ultra Librarian THD 10-2422WIN CAD Model

Description

The THD 10-2422WIN is a power supply board mount DC DC converter manufactured by Traco Power.

  • Win Source Part Number: 1335880-THD 10-2422WIN
  • Packaging: Tube packaging
  • Module Type: Isolated
  • Features: Remote On/Off, OCP, and SCP
  • Size/Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Suitable for: ITE (Commercial) applications
  • Standard Package: Includes 10 units
  • Mounting Type: Through hole
  • Power: 10 W
  • Voltage Isolation: 1.5 kV
  • Outputs: Two outputs with a maximum current output of 416mA each
  • Input Voltage: 9V to 36V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Efficiency: 87%
  • Operating Temperature: -40°C ~ 85°C (With Derating)
  • Case/Package: 24-DIP Module, 9 Leads
  • ROHS3 Compliant: Yes
