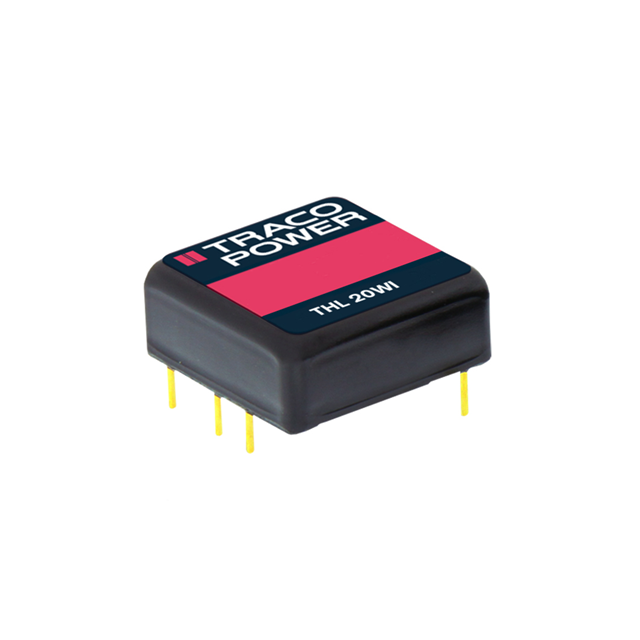

Same model may have multiple batches, images only for reference.

THL 20-4822WI

Name: THL 20-4822WI
Brand: Traco Power
SKU: 1335951
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	THL 20-4822WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 20W / Isolated Module DC DC Converter 2 Output 12V -12V 835mA, 835mA 18V - 75V Input
Datasheet	THL 20-4822WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	835mA, 835mA
Power (Watts)	20 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 75°C (With Derating)
Efficiency	89%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Base Product Number	THL 20
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THL 20-4822WI-ND,THL20-4822WI
Standard Package	10
Win Source Part Number	1335951-THL 20-4822WI
Ultra Librarian 3D Model	Ultra Librarian THL 20-4822WI CAD Model

Alternative Products

Description

The Traco Power THL 20-4822WI is a DC-DC converter that comes in a standard package of ten.

Type: Isolated module
Features: Remote on/off and SCP
Power Rating: 20 watts
Voltage Isolation: 1.5 kV
Outputs: Two
First Output Voltage: 12V
Second Output Voltage: -12V
Efficiency: 89 percent
Applications: ITE (Commercial)
Temperature Range: -40°C to 75°C (with derating)
Case/Package: 6-DIP module
Compliance: ROHS3 compliant
ECCN: EAR99
