Same model may have multiple batches, images only for reference.

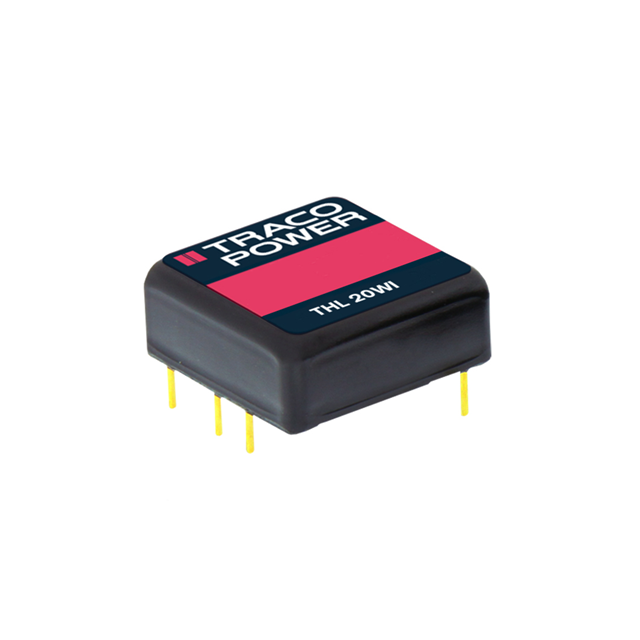

THL 20-4823WI Real Image
Same model may have multiple batches, images only for reference.

THL 20-4823WI

Part No THL 20-4823WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 20W / Isolated Module DC DC Converter 2 Output 15V -15V 670mA, 670mA 18V - 75V Input
Datasheet
THL 20-4823WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 670mA, 670mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 89%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Base Product Number THL 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THL 20-4823WI-ND,THL20-4823WI
Standard Package 10
Win Source Part Number 1335964-THL 20-4823WI
Ultra Librarian 3D Model Ultra Librarian THL 20-4823WI CAD Model

Description

This electronic component is a DC DC converter manufactured by Traco Power.

  • Win Source Part Number: 1335964-THL 20-4823WI
  • Packaging: Tube
  • Type: Isolated module
  • Features: Remote on/off and SCP
  • Size / Dimension: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
  • Applications: ITE (commercial)
  • Standard Package: 10 units
  • Mounting: Through hole
  • Power: 20W
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 2
  • Current Output (Max): 670mA (both outputs)
  • Voltage Input (Min): 18V
  • Voltage Input (Max): 75V
  • Voltage Output 1: 15V
  • Voltage Output 2: -15V
  • Efficiency: 89%
  • Temperature Range: -40°C to 75°C (with derating)
  • Case / Package: 6-DIP Module
  • Compliance: ROHS3 regulations
