Same model may have multiple batches, images only for reference.

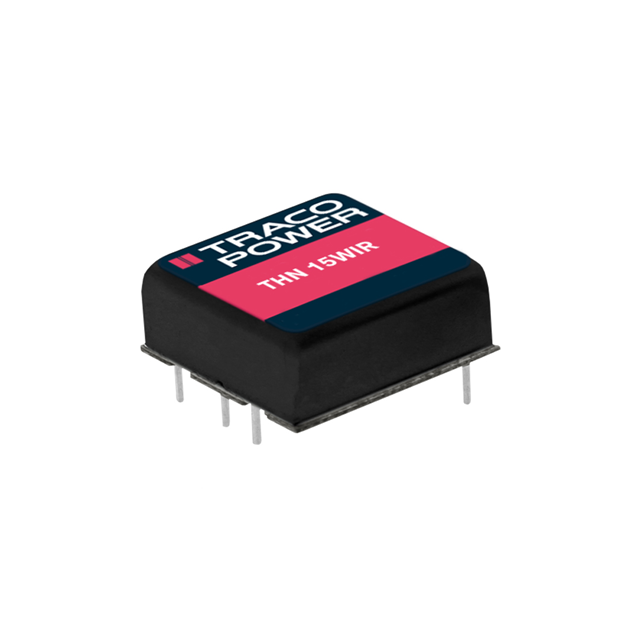

THN 15-7222WIR Real Image
Same model may have multiple batches, images only for reference.

THN 15-7222WIR

Part No THN 15-7222WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 15W / Isolated Module DC DC Converter 2 Output 12V -12V 625mA, 625mA 36V - 160V Input
Datasheet
THN 15-7222WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 160V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 625mA, 625mA
Power (Watts) 15 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 89%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 15
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN15-7222WIR,THN 15-7222WIR-ND
Standard Package 10
Win Source Part Number 1336041-THN 15-7222WIR
Ultra Librarian 3D Model Ultra Librarian THN 15-7222WIR CAD Model

Description

This electronic component is manufactured by Traco Power and has a Win Source Part Number of 1336041-THN 15-7222WIR.

  • Product Type: Power supply board mount DC DC converter
  • Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Supply and Demand Status: Balanced
  • Number of Outputs: Two
  • Maximum Current Output: 625mA
  • Voltage Input Range: 36V to 160V
  • Voltage Isolation: 3 kV
  • ROHS3 Compliant: Yes
