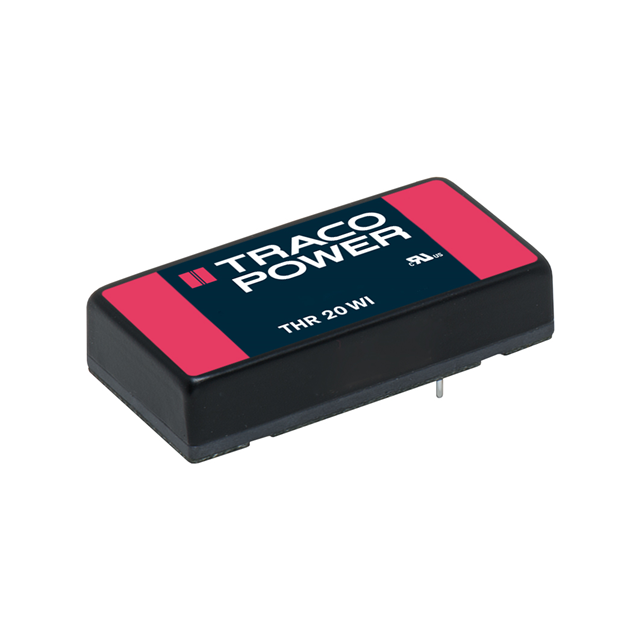

The THR20-2413WI is a 20-Watt DC-DC converter manufactured by Traco Power. This isolated converter is designed to provide a stable and regulated power supply for various electronic applications, particularly in demanding industrial and transportation environments.

Applications

• Industrial Automation Systems: Providing power to PLCs, sensors, and other control equipment.
• Transportation Systems: Powering onboard electronics in trains, buses, and other vehicles.
• Battery-Powered Equipment: Efficiently converting battery voltage to required levels.
• Telecommunications Equipment: Supplying power to network devices and infrastructure.
• Medical Equipment: Providing isolated power for sensitive medical devices.

Features

• 20 Watts Output Power
• Wide 4:1 Input Voltage Range: Typically 9-36 VDC or 18-75 VDC depending on the exact model.
• Operating temperature range of -40°C to +85°C
• 1500 VDC I/O Isolation
• High Efficiency: Up to 90% (depending on load).
• Built-in Input Filter
• Short-Circuit Protection
• Over-Voltage Protection
• Under-Voltage Lockout
• Remote On/Off Control

Benefits

• Reliable Power Supply: Provides a stable and regulated output voltage, ensuring consistent performance of connected devices.
• Wide Input Voltage Range: Accommodates a variety of input power sources, simplifying system design.
• High Efficiency: Minimizes power loss and heat generation, improving overall system efficiency and reducing cooling requirements.
• Isolation: Provides electrical isolation between the input and output, protecting sensitive circuits from voltage spikes and ground loops.
• Protection Features: Protects the converter and connected devices from damage due to short circuits, over-voltage, and under-voltage conditions.
• Compact Size: Enables easy integration into space-constrained applications.

Technical Specifications

Input Voltage Range: Typically 9-36 VDC or 18-75 VDC, depending on model variation. Output Voltage: Available in various output voltages such as 3.3 VDC, 5 VDC, 12 VDC, 15 VDC, 24 VDC. Isolation Voltage: 1500 VDC. Operating Temperature: -40°C to +85°C. Efficiency: Up to 90%. Dimensions: Compact size, dimensions vary slightly depending on model. Safety Standards: Meets industry safety standards such as EN 62368-1.
