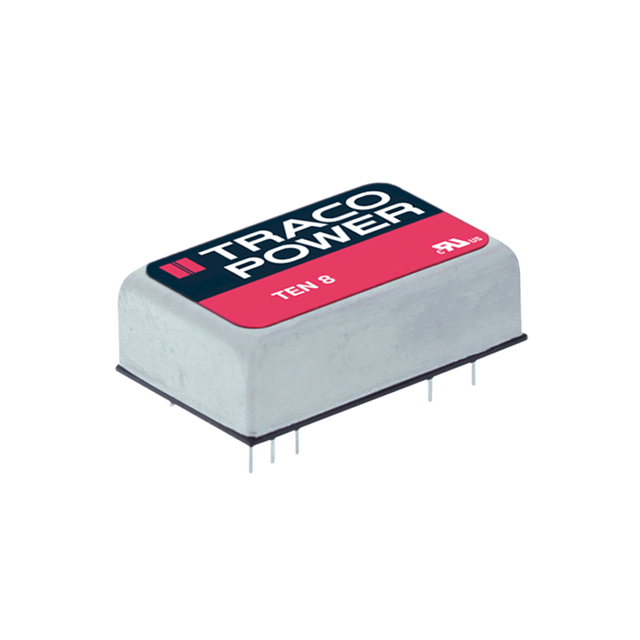

TEN 8-1211 Real Image
Same model may have multiple batches, images only for reference.

TEN 8-1211

Part No TEN 8-1211
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 7.5W / Isolated Module DC DC Converter 1 Output 5V 1.5A 9V - 18V Input
Datasheet
TEN 8-1211 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEN 8 (8W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Current - Output (Max) 1.5A
Power (Watts) 7.5 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 24-DIP Module, 9 Leads
Dimension 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Base Product Number TEN 8
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2566
Standard Package 10
Win Source Part Number 1212444-TEN 8-1211
Ultra Librarian 3D Model Ultra Librarian TEN 8-1211 CAD Model

Description

The TEN 8 (8W) isolated module DC-DC converter is an efficient power supply solution for ITE (Commercial) applications.

  • Voltage Isolation: 1.5 kV
  • Maximum Output Current: 1.5A
  • Power Rating: 7.5 W
  • Features: Remote On/Off, OCP, and SCP
  • Efficiency: 83%
  • Input Voltage Range: 9V to 18V
  • Package: 24-DIP Module, 9 Leads
  • Operating Temperature: -40°C to 85°C with derating
  • Dimensions: 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
  • Package: Tube
  • Alternative parts: TEN8-1211
  • ECCN: EAR99
