Same model may have multiple batches, images only for reference.

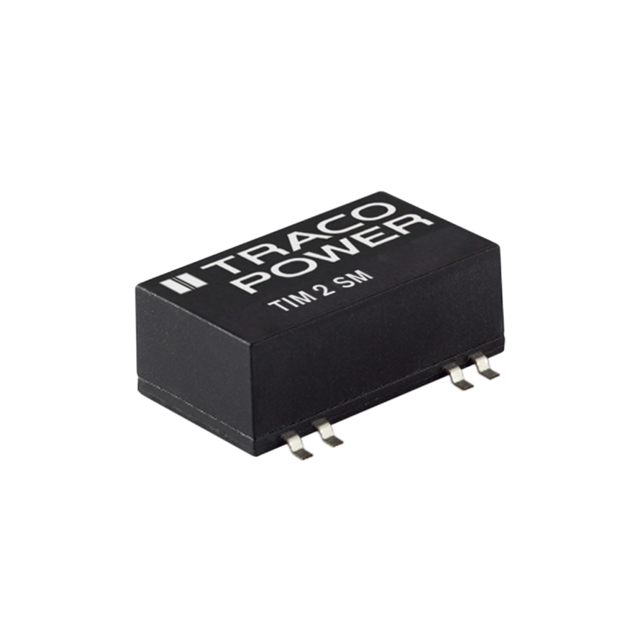

TIM 2-2411SM Real Image
Same model may have multiple batches, images only for reference.

TIM 2-2411SM

Part No TIM 2-2411SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W  /  Isolated Module DC DC Converter 1 Output 5V 400mA 18V - 36V Input
Datasheet
TIM 2-2411SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TIM 2SM (2W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 5 kV
Applications Medical
Features Remote On/Off, OVP, SCP
Temperature Range - Operating -40°C ~ 95°C (With Derating)
Efficiency 78%
Mounting SMD (SMT)
Package / Case 16-SMD Module, 7 Leads
Dimension 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm)
Base Product Number TIM 2
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-1939
Standard Package 10
Win Source Part Number 1230233-TIM 2-2411SM
Ultra Librarian 3D Model Ultra Librarian TIM 2-2411SM CAD Model

Description

The 1230233-TIM 2-2411SM is an isolated module DC-DC converter that has a power output of 2W and a voltage isolation of 5kV.

  • Type: Isolated module DC-DC converter
  • Power Output: 2W
  • Voltage Isolation: 5kV
  • Current Output: 400mA
  • Efficiency: 78%
  • Features: Remote on/off, OVP, and SCP
  • Application: Medical applications
  • Temperature Range: -40°C to 95°C (with derating)
  • Package Type: 16-SMD module, 7 leads
  • Alternative Parts: TIM2-2411SM
  • Supplier Device Package: Not specified
