Same model may have multiple batches, images only for reference.

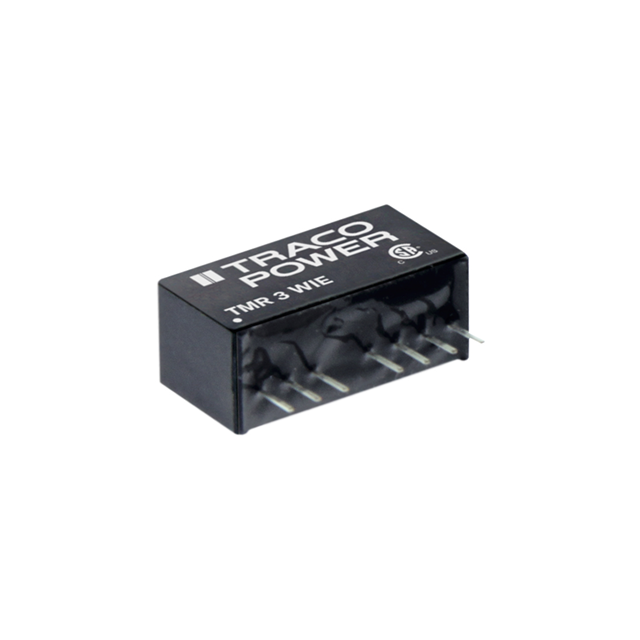

TMR 3-1223WIE Real Image
Same model may have multiple batches, images only for reference.

TMR 3-1223WIE

Part No TMR 3-1223WIE
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 4.5V - 18V Input
Datasheet
TMR 3-1223WIE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 80%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Base Product Number TMR 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR3-1223WIE,TMR 3-1223WIE-ND
Standard Package 10
Win Source Part Number 1336190-TMR 3-1223WIE
Ultra Librarian 3D Model Ultra Librarian TMR 3-1223WIE CAD Model

Description

The Traco Power TMR 3-1223WIE is a 3 W isolated module DC-DC converter with a remote on/off feature and SCP protection.

  • Application: ITE (Commercial) applications
  • Standard Package: 10
  • Size: 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
  • Mounting: Through hole
  • Outputs: Two
  • Maximum Output Current 1: 100mA
  • Maximum Output Current 2: 100mA
  • Input Voltage Range: 4.5V to 18V
  • Output Voltage 1: 15V
  • Output Voltage 2: -15V
  • Efficiency: 80%
  • Voltage Isolation: 1.5 kV
  • Operating Temperature: -40°C to 85°C (With Derating)
  • Case/Package: 8-SIP module, 7 leads case/package
  • ROHS3: Compliant
  • ECCN: EAR99
