Same model may have multiple batches, images only for reference.

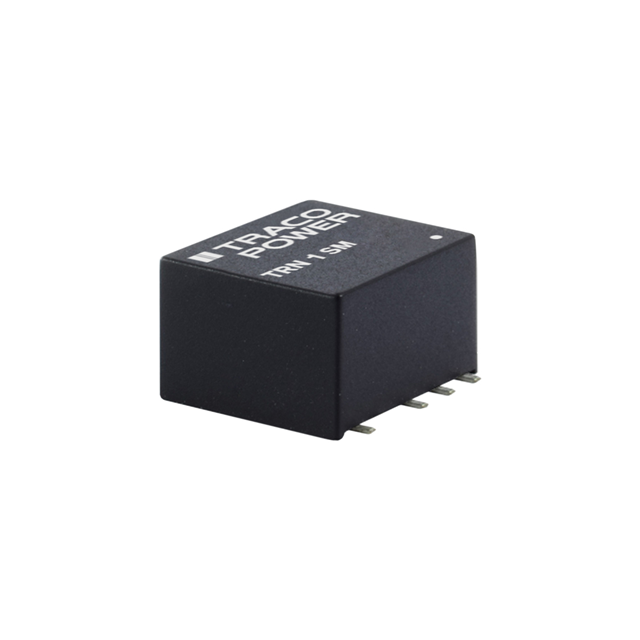

TRN 1-4823SM Real Image
Same model may have multiple batches, images only for reference.

TRN 1-4823SM

Part No TRN 1-4823SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1.1W / Isolated Module DC DC Converter 2 Output 15V -15V 35mA, 35mA 36V - 75V Input
Datasheet
TRN 1-4823SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 35mA, 35mA
Power (Watts) 1.1 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 79%
Mounting Surface Mount
Case / Package 7-SMD Module
Size / Dimension 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
Base Product Number TRN 1
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TRN 1-4823SM-ND,TRN1-4823SM
Standard Package 10
Win Source Part Number 1336352-TRN 1-4823SM
Ultra Librarian 3D Model Ultra Librarian TRN 1-4823SM CAD Model

Description

The Traco Power TRN 1-4823SM is a DC-DC converter module with a power output of 1.1 watts.

  • Power Output: 1.1 watts
  • Type: Isolated Module
  • Outputs: Two
  • Output Voltage 1: 15V
  • Output Voltage 2: -15V
  • Voltage Isolation: 1.6 kV
  • Application: ITE (Commercial)
  • Features: SCP
  • Mounting Style: Surface Mount
  • Dimensions: 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
  • ROHS3 Compliant: Yes
  • Operating Temperature: -40°C ~ 90°C
