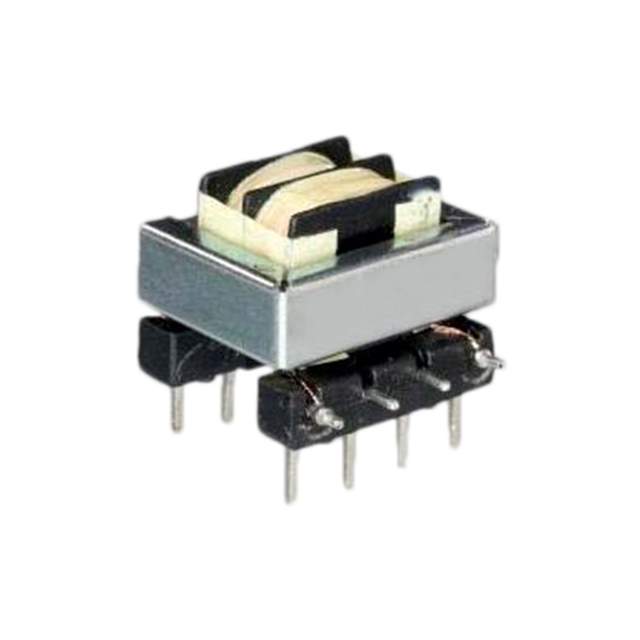

CSE185L Real Image
Same model may have multiple batches, images only for reference.

CSE185L

Part No CSE185L
Manufacturer Triad Magnetics
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:50 3A T/H  /  3 A 1:50 Current Sense Transformer 50Hz ~ 400Hz 19.5mOhm Primary, 23Ohm Secondary Through Hole
Datasheet
CSE185L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr Triad Magnetics
Package Bulk
Frequency Range 50Hz ~ 400Hz
Type Invasive
Current Rating (Amps) 3 A
DC Resistance (DCR) 19.5mOhm Primary, 23Ohm Secondary
Mounting Type Through Hole
Dimension 0.846" L x 0.945" W (21.50mm x 24.00mm)
Height - Seated (Max) 0.709" (18.00mm)
Termination Style PC Pin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names 237-2083
Standard Package 1
Win Source Part Number 1022973-CSE185L
Ultra Librarian 3D Model Ultra Librarian CSE185L CAD Model

Description

The Triad Magnetics 1022973-CSE185L is a current sense transformer that is used in transformers.

  • Type: Invasive
  • Termination Style: PC pin
  • Height: 18.00mm
  • Weight: Not specified
  • Package: Bulk
  • Frequency Range: 50Hz to 400Hz
  • DC Resistance (Primary): 19.5mOhm
  • DC Resistance (Secondary): 23Ohm
  • Current Rating: 3A
  • REACH Status: Unaffected
