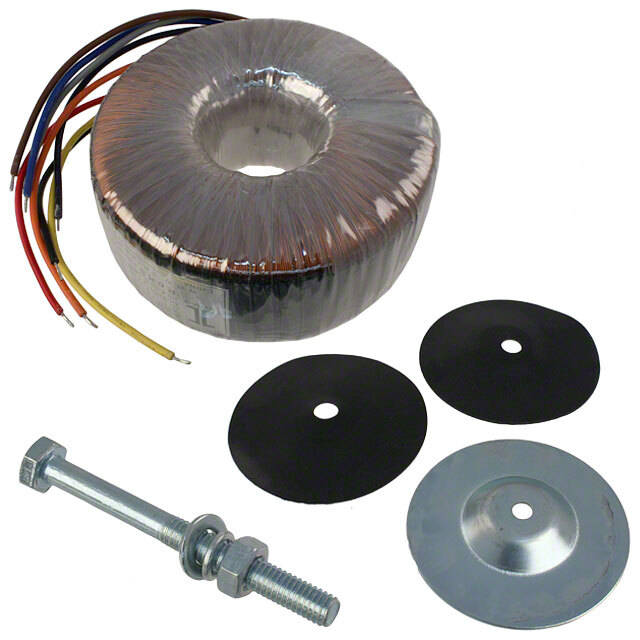

VPT230-700 Triad Magnetics
Same model may have multiple batches, images only for reference.

VPT230-700

Part No VPT230-700
Manufacturer Triad Magnetics
Catalog Power Transformers
Description XFRMR TOROIDAL 160VA CHAS MOUNT / Power Transformer 4000VAC 160VA 8 Terminal Wire Lead Center Single Hole
Datasheet
VPT230-700 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Triad Magnetics
Type Toroidal
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 115V, Series 230V
Current - Output (Maximum) Parallel 1.4A, Series 700mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 160 VA
Mounting Chassis Mount
Termination Style Wire Leads
Dimension 103.00mm Dia x 48.00mm W
Voltage - Isolation 4000Vrms
Weight 3.6 lbs (1.6kg)
Win Source Part Number 792649-VPT230-700
Popularity Medium
Supply and Demand Status Balance
Family Name VPT
Introduction Date June 14, 2009
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian VPT230-700 CAD Model

Description

The Triad Magnetics VPT230-700 is a toroidal transformer that has a maximum power of 160 VA.

  • Voltage Isolation: 4000Vrms
  • Weight: 3.6 lbs (1.6kg)
  • Primary Voltage: 115V, 230V
  • Secondary Voltage (Full Load): Parallel 115V, Series 230V
  • Winding(s): Dual Primary and Secondary
  • Mounting Type: Chassis Mount
  • Dimensions: 103.00mm Dia x 48.00mm W
