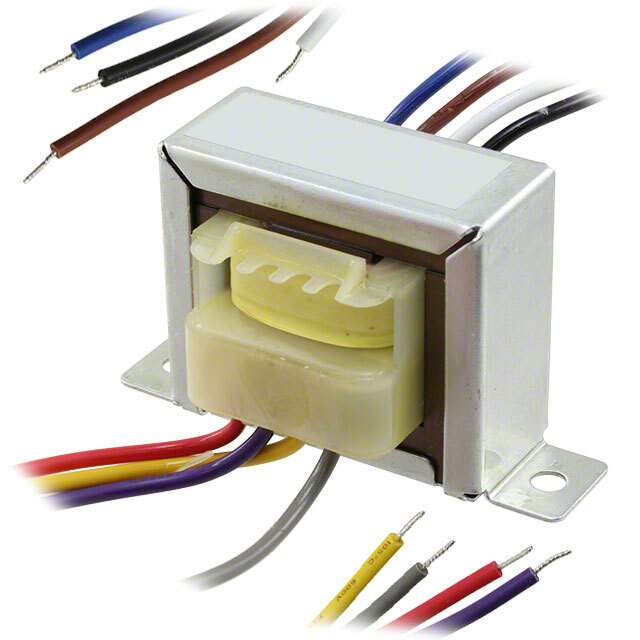

VPL10-1000 Real Image
Same model may have multiple batches, images only for reference.

VPL10-1000

Part No VPL10-1000
Manufacturer Triad Magnetics
Catalog Power Transformers
Description XFRMR PWR 10V 1A CHASSIS / Power Transformer 3500VAC 10VA 8 Terminal Wire Lead Flange Mount
Datasheet
VPL10-1000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Triad Magnetics
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) 10V
Current - Output (Maximum) 1A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 10.0 VA
Mounting Chassis Mount
Termination Style Wire Leads
Dimension 36.52mm L x 71.44mm W
Height - Seated (Maximum) 44.45mm
Voltage - Isolation 3500Vrms
Weight 0.7 lb (317.51g)
Win Source Part Number 799184-VPL10-1000
Popularity Medium
Supply and Demand Status Limited
Family Name VPL
Introduction Date November 15, 2009
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian VPL10-1000 CAD Model

Description

The Triad Magnetics VPL10-1000 transformer is a laminated core type transformer from Triad Magnetics.

  • Core Type: Laminated
  • Maximum Power: 10.0 VA
  • Weight: 0.7 lb (317.51g)
  • Voltage Isolation: 3500Vrms
  • Primary Voltages: 115V, 230V
  • Windings: Dual Primary and Secondary
  • Center Tap: No
  • Mounting: Chassis
  • Current Output: 1A
  • Family: VPL
  • Dimension: 36.52mm L x 71.44mm W
  • Introduction Date: November 15, 2009
  • Country of Manufacture: Philippines
  • Estimated EOL Date: 2028
  • Supply and Demand Status: Limited
