Same model may have multiple batches, images only for reference.

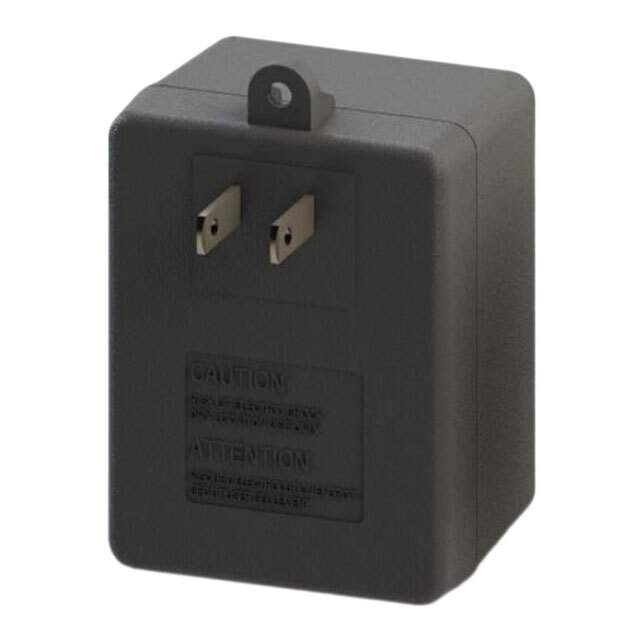

WAU240-500 Real Image
Same model may have multiple batches, images only for reference.

WAU240-500

Part No WAU240-500
Manufacturer Triad Magnetics
Catalog AC AC Wall Adapters
Description AC/AC WALL MNT ADAPTER 24V 500MA / 24VAC 500mA AC/AC External Wall Mount Adapter Fixed Blade Input
Datasheet
WAU240-500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC AC Wall Adapters
Mfr Triad Magnetics
Series WAU240
Package Bulk
Region Utilized North America
Form Wall Mount
Input Type Fixed Blade
Voltage - Input 120VAC
Voltage - Output 24VAC
Current - Output (Max) 500mA
Power (Watts) 12 W
No Load Power Consumption 210mW (Max)
Applications ITE (Commercial)
Efficiency Level VI
Temperature Range - Operating -10°C ~ 50°C
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Dimension 1.89" L x 2.36" W x 3.15" H (48.0mm x 60.0mm x 80.0mm)
Approval Agency cULus
Input Connector NEMA 1-15P
Cord Length 72" (1.83m)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.7001
Standard Package 1
Win Source Part Number 1125540-WAU240-500
Ultra Librarian 3D Model Ultra Librarian WAU240-500 CAD Model

Description

Triad Magnetics' WAU240-500 is a wall mount AC-AC power adapter designed for use in ITE (Commercial) applications.

  • Application: ITE (Commercial)
  • Maximum Output Power: 12W
  • Voltage Output: 24VAC
  • Input Type: Fixed blade
  • Output Connector: Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
  • Efficiency: Level VI
  • Operating Temperature Range: -10°C to 50°C
