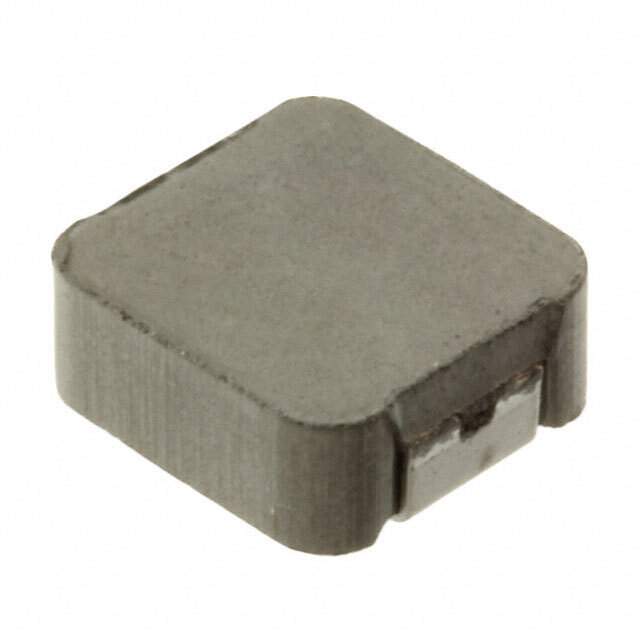

The HM72E-061R0LFTR13 is a high-performance shielded power inductor manufactured by TT Electronics. This inductor is designed for demanding power conversion applications where efficiency, reliability, and compact size are critical.

Applications

• DC-DC converters
• Power supplies for portable devices
• LED lighting drivers
• Buck, boost, and buck-boost regulators
• Filtering circuits

Features

• Shielded construction for low EMI radiation
• High current carrying capacity
• Low DC resistance (DCR) for improved efficiency
• Compact size for space-constrained applications
• Operating temperature range: -40°C to +125°C
• Inductance value: 0.61 µH
• Tolerance: ±20%

Benefits

• Reduced electromagnetic interference, ensuring compliance with emission standards
• Efficient power conversion due to low DCR, minimizing power losses
• High saturation current, enabling stable operation under peak load conditions
• Small footprint, allowing for miniaturization of electronic devices
• Reliable performance in harsh environments, thanks to robust construction

Additional Details

The HM72E-061R0LFTR13 features a ferrite core material and is designed for surface mount technology (SMT) assembly. The shielded construction minimizes electromagnetic interference (EMI), making it suitable for sensitive applications. This inductor's low DC resistance (DCR) minimizes power losses and improves overall efficiency in power conversion circuits. The component's compact size is ideal for applications where board space is limited. It is RoHS compliant, ensuring environmental responsibility.
