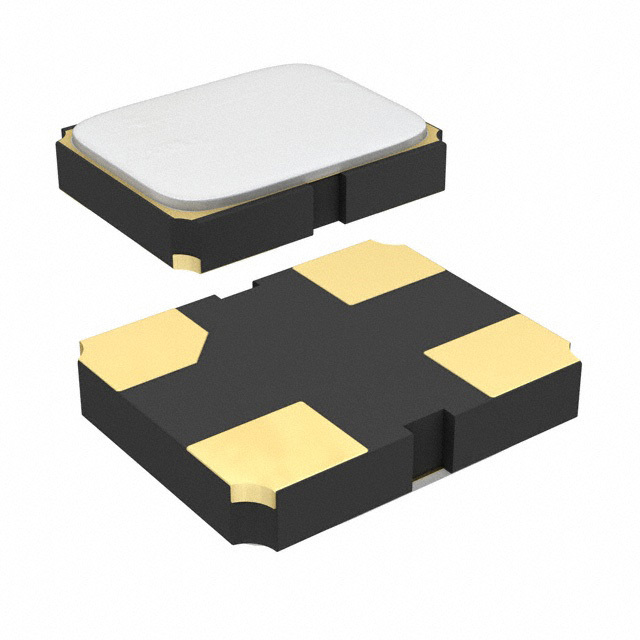

Same model may have multiple batches, images only for reference.
8Y-24.000MAAJ-T TXC CORPORATION – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

8Y-24.000MAAJ-T

Part No 8Y-24.000MAAJ-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 24.0000MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Active
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Operating Temperature -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.022\
Ultra Librarian 3D Model Ultra Librarian 8Y-24.000MAAJ-T CAD Model
