Same model may have multiple batches, images only for reference.

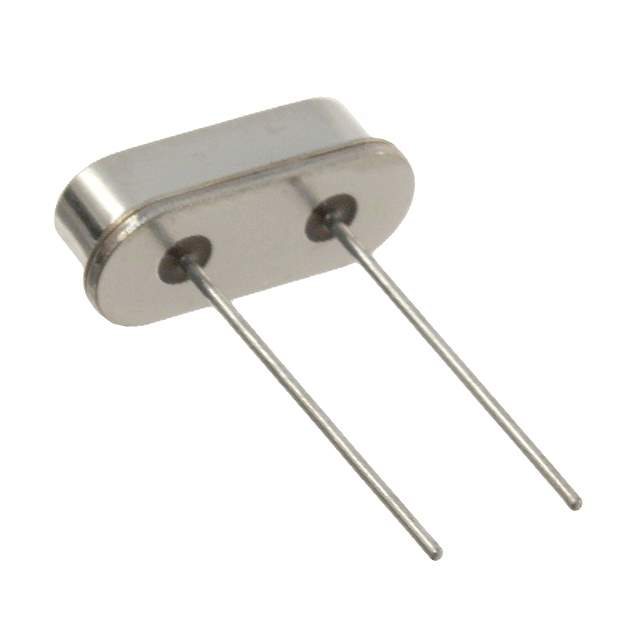

9B-7.680MBBK-B Real Image
Same model may have multiple batches, images only for reference.

9B-7.680MBBK-B

Part No 9B-7.680MBBK-B
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 7.6800MHZ 20PF T/H / Crystal 7.68MHz ±50ppm (Tol) ±50ppm (Stability) 20pF FUND 80Ohm 2-Pin DIP HC-49/S Thru-Hole Bulk
Datasheet
9B-7.680MBBK-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TXC CORPORATION
Series 9B
Packaging Bulk
Type MHz Crystal
Frequency 7.68MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 80 Ohm
Operating Mode Fundamental
Operating Temperature Range -20°C ~ 70°C
Mounting Style Through Hole
Package HC49/US
Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Maximum) 0.145" (3.68mm)
Win Source Part Number 769550-9B-7.680MBBK-B
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 9B-7.680MBBK-B CAD Model

Description

The TXC CORPORATION 9B series MHz Crystal is a high-quality crystal designed for use in various electronic devices.

  • Packaging: Bulk
  • Mounting: Through Hole
  • Operating Temperature: -20°C to 70°C
  • Frequency: 7.68MHz
  • ESR: 80 Ohm
  • Frequency Stability: ±50ppm
  • Load Capacitance: 20pF
  • Mode: Fundamental
  • Dimensions: 0.453" L x 0.197" W (11.50mm x 5.00mm)
  • Height: 0.145" (3.68mm) Max
  • Halogen-Free: Yes
  • Estimated EOL Date: 2025
