Same model may have multiple batches, images only for reference.

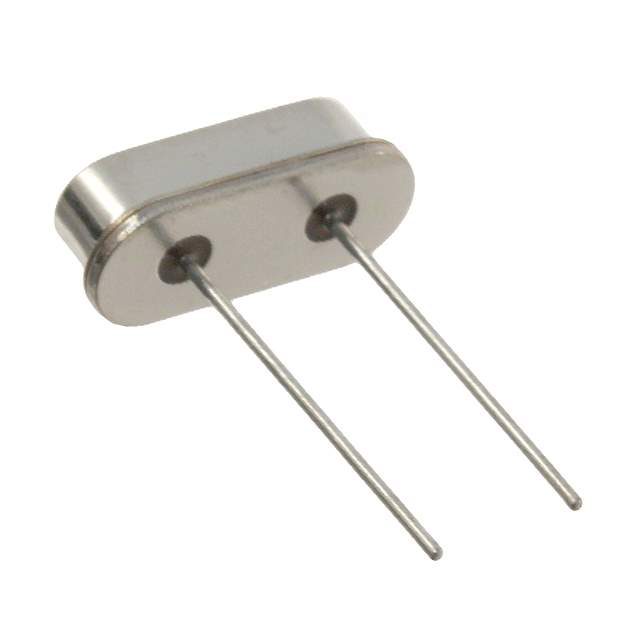

9B16080003 Real Image
Same model may have multiple batches, images only for reference.

9B16080003

Part No 9B16080003
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 16MHZ 10PF TH
Datasheet
9B16080003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TXC CORPORATION
Packaging Bulk
Status Active
Type MHz Crystal
Frequency 16MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 10pF
Temperature Range - Operating -20°C to 70°C
Mounting Through Hole
Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.145" (3.68mm)
Win Source Part Number 1021390-9B16080003
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 9B16080003 CAD Model

Description

TXC CORPORATION's 1021390-9B16080003 is a 16MHz MHz Crystal with a frequency stability of ±30ppm and a frequency tolerance of ±30ppm.

  • Mounting Technology: Through-Hole
  • Height: 0.145" (3.68mm)
  • Dimensions: 0.453" L x 0.197" W (11.50mm x 5.00mm)
  • Product Status: Active
  • Operating Temperature Range: -20°C to 70°C
  • Supply and Demand Status: Balanced
