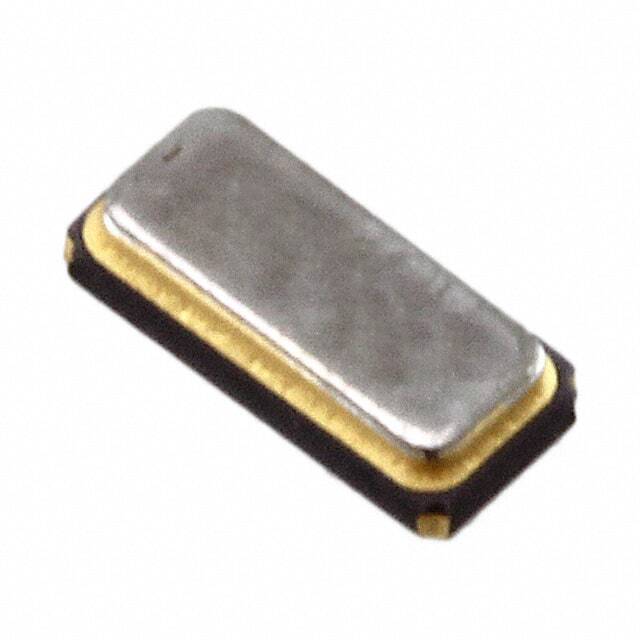

Same model may have multiple batches, images only for reference.
AH03200003
Same model may have multiple batches, images only for reference.

AH03200003

Part No AH03200003
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 12.5PF SMD
Datasheet
AH03200003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series AH
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.033" (0.85mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 860732-AH03200003
Ultra Librarian 3D Model Ultra Librarian AH03200003 CAD Model

Description

The AH series kHz Crystal (Tuning Fork) is a compact electronic component designed for use in various applications.

  • Frequency: 32.768 kHz
  • Load Capacitance: 12.5pF
  • Mode: Fundamental
  • Mounting Type: Surface Mount
  • Package Size: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Seated Height: 0.033" (0.85mm)
  • Temperature Range: -40°C to 85°C
  • AEC-Q200: Rated
  • Manufacturer: TXC CORPORATION
  • Product Status: Active
  • Package Quantity: 3,000 pcs
