NA-PJ-20 TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

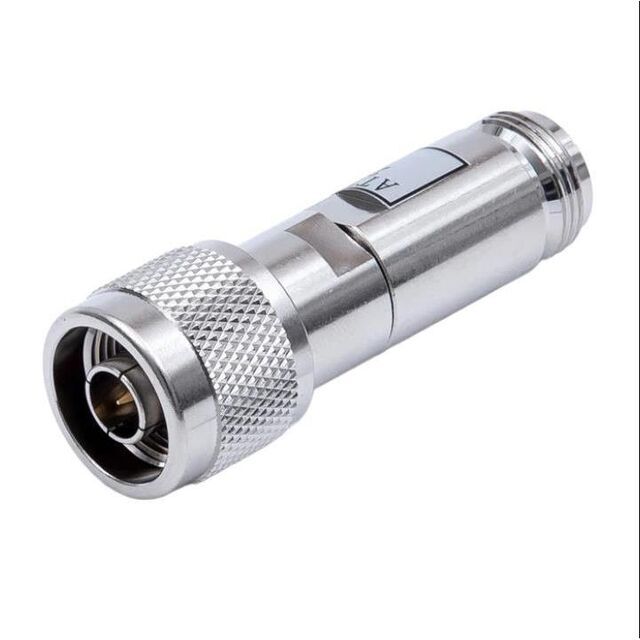

NA-PJ-20

Part No NA-PJ-20
Manufacturer TYCLON
Catalog Attenuators
Description RF Attenuators 20dB 0 Hz ~ 4 GHz 50 Ohms 2W N-Type In-Line Module
an N Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 4 GHz, and an excellent V.S.W.R 1.15(Max.) at DC~2 GHz, 1.2(Max.) at DC~4 GHz. Withstanding temperatures from -20 to +65°C. The contact is made of Brass/Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 2W.Attenuation is 20±0.5dB up to 2GHz, 20±1.2dB up to 4GHz.
Datasheet
NA-PJ-20 Datasheet
Sample
Rohs State rohs
ECAD Module
