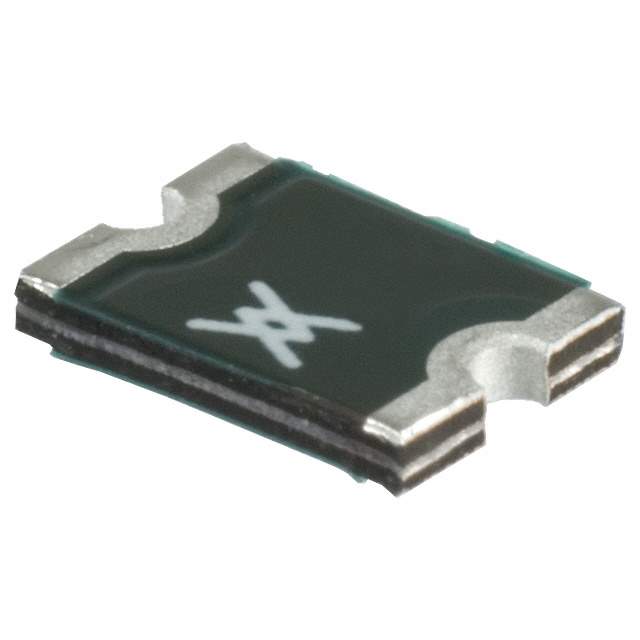

The MINISMDC160F is a resettable fuse, also known as a Polymeric Positive Temperature Coefficient (PPTC) device, manufactured by Tyco Electronics (now TE Connectivity). This component is designed to protect electronic circuits from overcurrent conditions. When an overcurrent event occurs, the device heats up and its resistance increases dramatically, limiting the current flow and protecting the circuit. Once the fault is cleared and power is removed, the device cools down and returns to its low-resistance state, allowing normal operation to resume. This resettable functionality makes it a convenient and reliable alternative to traditional fuses.

Applications

• USB port protection
• Power supply protection
• Battery protection
• Consumer electronics
• Automotive electronics

Features

• Resettable Fuse: Automatically resets after the overcurrent condition is removed.
• Surface Mount Package: Designed for easy surface mounting on printed circuit boards (PCBs).
• Fast Trip Time: Quickly responds to overcurrent events, minimizing damage to protected circuits.
• Low Resistance: Provides minimal impedance under normal operating conditions.
• Compact Size: Suitable for space-constrained applications.

Benefits

• Enhanced Circuit Protection: Protects electronic circuits from damage due to overcurrent events.
• Reduced Downtime: Eliminates the need to replace blown fuses, reducing downtime and maintenance costs.
• Improved Reliability: Provides reliable overcurrent protection in a variety of applications.
• Simplified Design: Easy to integrate into existing and new designs.
• Cost-Effective: Offers a cost-effective solution for overcurrent protection.

Additional Details

The MINISMDC160F PPTC device has specific electrical characteristics such as trip current, hold current, and maximum voltage rating. These parameters should be carefully considered when selecting the appropriate device for a particular application. The hold current is the maximum current the device can carry without tripping, while the trip current is the current at which the device will trip and limit the current flow. The maximum voltage rating is the maximum voltage the device can withstand without damage. The device's trip time is the time it takes for the device to trip at a specified overcurrent level. This parameter is crucial for protecting sensitive electronic components. The MINISMDC160F typically has a low resistance under normal operating conditions, which minimizes voltage drop and power dissipation. The device's operating temperature range should also be considered, as the trip current and hold current may vary with temperature. Proper soldering techniques should be used when mounting the device on a PCB to ensure reliable electrical connection and prevent damage to the device.
