Same model may have multiple batches, images only for reference.

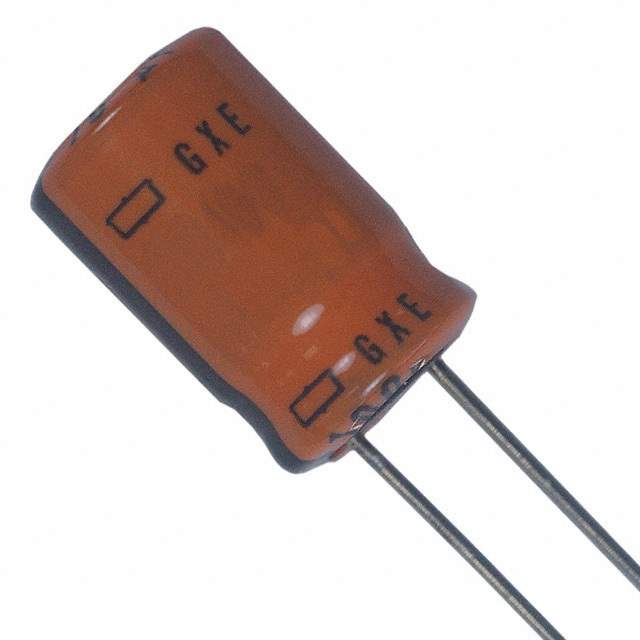

EGXE800ELL471ML25S Real Image
Same model may have multiple batches, images only for reference.

EGXE800ELL471ML25S

Part No EGXE800ELL471ML25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 80V RADIAL / 470 µF 80 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series GXE
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 80 V
Lifetime @ Temp. 5000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 750 mA @ 120 Hz
Ripple Current @ High Frequency 1.5 A @ 100 kHz
Impedance 110 mOhms
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.043" (26.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 500
Win Source Part Number 1178083-EGXE800ELL471ML25S
Ultra Librarian 3D Model Ultra Librarian EGXE800ELL471ML25S CAD Model

Description

The GXE series aluminum electrolytic capacitor is a high-performance capacitor that is designed for use in automotive applications.

  • Series: GXE
  • Capacitor Type: Aluminum Electrolytic
  • Application: Automotive
  • Capacitance: 470 µF
  • Voltage Rating: 80 V
  • Tolerance: ±20%
  • Impedance: 110 mOhms
  • Lifetime: 5000 hours @ 125°C
  • Polarization: Polarized
  • Mounting Type: Through-Hole
  • Package/Case: Radial, Can Type
  • Dimension: 0.630" Dia (16.00mm)
  • Ripple Current: 750 mA @ 120 Hz (Low Frequency), 1.5 A @ 100 kHz (High Frequency)
  • Manufacturer: United Chemi-Con
