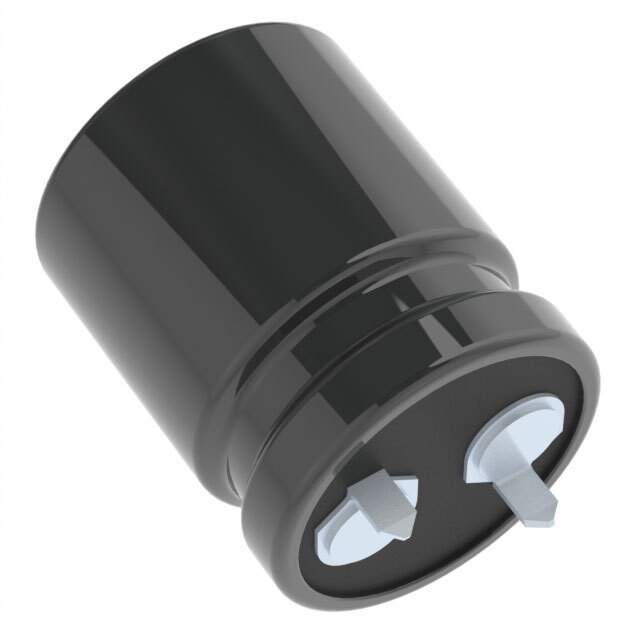

EKMZ451VSN121MP25S Real Image
Same model may have multiple batches, images only for reference.

EKMZ451VSN121MP25S

Part No EKMZ451VSN121MP25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 120UF 20% 450V SNAP / 120 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMZ
Package Box
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 780 mA @ 120 Hz
Ripple Current @ High Frequency 1.115 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.866" Dia (22.00mm)
Height - Seated (Max) 1.083" (27.50mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1351484-EKMZ451VSN121MP25S
Ultra Librarian 3D Model Ultra Librarian EKMZ451VSN121MP25S CAD Model

Description

The KMZ series from United Chemi-Con is a range of aluminum electrolytic capacitors designed for general purpose use.

  • Capacitance: 120 µF
  • Voltage Rating: 450 V
  • Tolerance: ±20%
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can - Snap-In
  • Ripple Current: 780 mA @ 120 Hz, 1.115 A @ 50 kHz
  • ESR (Equivalent Series Resistance): Not Specified
  • Lifetime: 2000 hours @ 105°C
  • Polarization: Polarized
  • Size / Dimension: 0.866" Dia (22.00mm)
  • Height - Seated (Max): 1.083" (27.50mm)
  • Application: General Purpose
