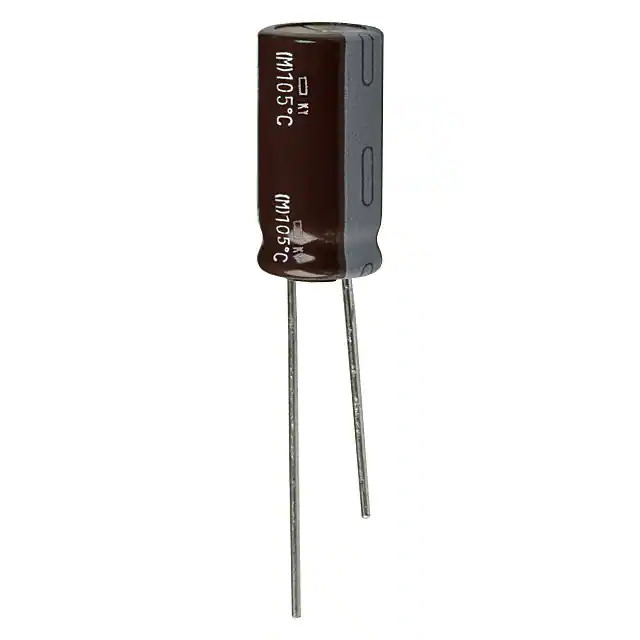

Same model may have multiple batches, images only for reference.

EKY-250ETD681MJ20S

Name: EKY-250ETD681MJ20S
Brand: United Chemi-Con
SKU: 1357916
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EKY-250ETD681MJ20S
Manufacturer	United Chemi-Con
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 25V RADIAL / 680 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	United Chemi-Con
Series	KY
Package	Tape & Box (TB)
Product Status	Active
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	840 mA @ 120 Hz
Ripple Current @ High Frequency	1.4 A @ 100 kHz
Impedance	46 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357916-EKY-250ETD681MJ20S
Ultra Librarian 3D Model	Ultra Librarian EKY-250ETD681MJ20S CAD Model

Alternative Products

Description

The KY series capacitor by United Chemi-Con is a versatile aluminum electrolytic capacitor suitable for general-purpose electronic applications.

Capacitance: 680 μF
Voltage Rating: 25 V
Tolerance: ±20%
Lifetime @ Temp.: 7000 Hrs @ 105°C
Package / Case: Radial, Can
Mounting Type: Through Hole
Ripple Current @ Low Frequency: 840 mA @ 120 Hz
Ripple Current @ High Frequency: 1.4 A @ 100 kHz
Diameter: 0.394" (10.00mm)
Height - Seated (Max): 0.846" (21.50mm)
