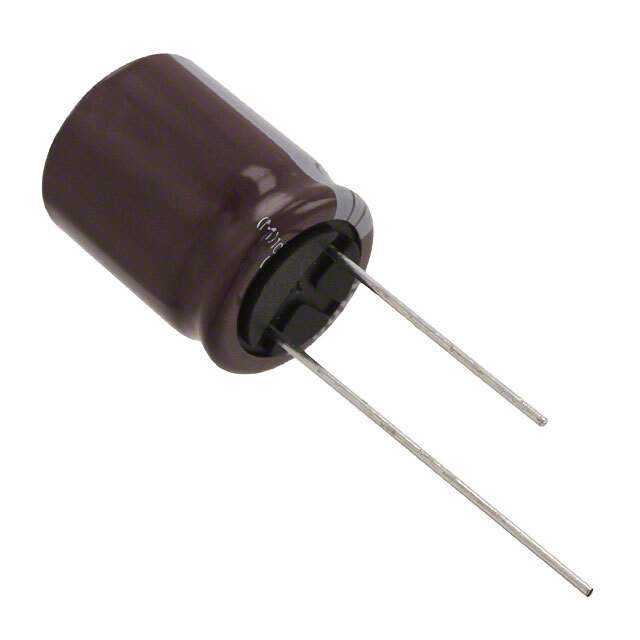

Same model may have multiple batches, images only for reference.

EKZE101EC5561MLP1S

Name: EKZE101EC5561MLP1S
Brand: United Chemi-Con
SKU: 988009
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EKZE101EC5561MLP1S
Manufacturer	United Chemi-Con
Catalog	Aluminum Capacitors
Description	CAP ALUM 560UF 20% 100V RADIAL / 560 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	United Chemi-Con
Series	KZE
Package	Tape & Reel (TR)
Capacitance	560 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1 A @ 120 Hz
Ripple Current @ High Frequency	2 A @ 100 kHz
Impedance	29 mOhms
Lead Spacing	0.295" (7.50mm)
Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	500
Win Source Part Number	988009-EKZE101EC5561MLP1S
Ultra Librarian 3D Model	Ultra Librarian EKZE101EC5561MLP1S CAD Model

Alternative Products

Description

The 988009-EKZE101EC5561MLP1S capacitor is a high-quality aluminum electrolytic capacitor from United Chemi-Con suitable for general-purpose applications.

Capacitance: 560 µF
Voltage Rating: 100 V
Polarization: Polarized
Tolerance: ±20%
Ripple Current (Low Frequency): 1 A
Ripple Current (High Frequency): 2 A
Lifetime: 5000 hours @ 105°C
Package: radial, can-shaped
Mounting: through hole
Lead Spacing: 0.295" (7.50mm)
Dimensions: 0.630" Dia (16.00mm) and 1.457" (37.00mm) in height when seated
Packaging: tape and reel
Standard Package: 500
ROHS3 Compliant: Yes
REACH Affected: No
