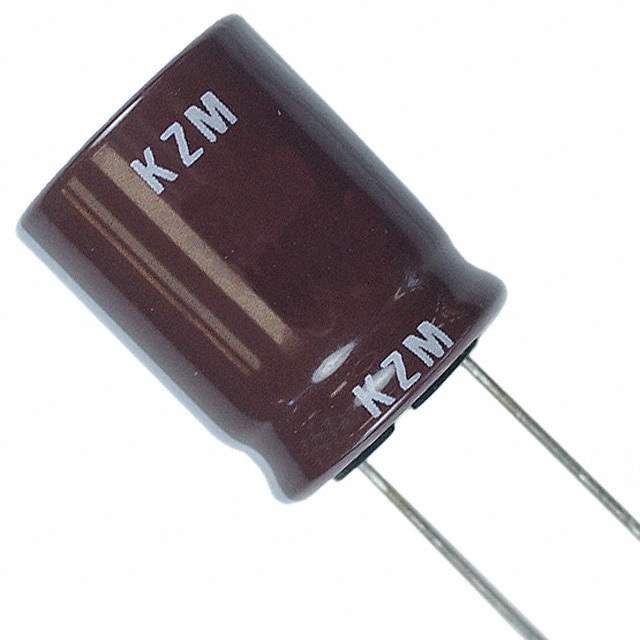

EKZM160ELL102MH20D Real Image
Same model may have multiple batches, images only for reference.

EKZM160ELL102MH20D

Part No EKZM160ELL102MH20D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 16V RADIAL / 1000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZM
Package Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 900 mA @ 120 Hz
Ripple Current @ High Frequency 1.5 A @ 100 kHz
Impedance 29 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names EKZM160ELL102MH20D-ND,565-3567
Standard Package 1,000
Win Source Part Number 1159278-EKZM160ELL102MH20D
Ultra Librarian 3D Model Ultra Librarian EKZM160ELL102MH20D CAD Model

Description

The KZM series aluminum electrolytic capacitor is a general-purpose capacitor that is widely used in various electronic circuits.

  • Capacitance: 1000μF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Impedance: 29mOhms
  • Ripple Current (Low Frequency): 900mA @ 120Hz
  • Ripple Current (High Frequency): 1.5A @ 100kHz
  • Package: Radial, Can
  • Mounting: Through-Hole
