Same model may have multiple batches, images only for reference.

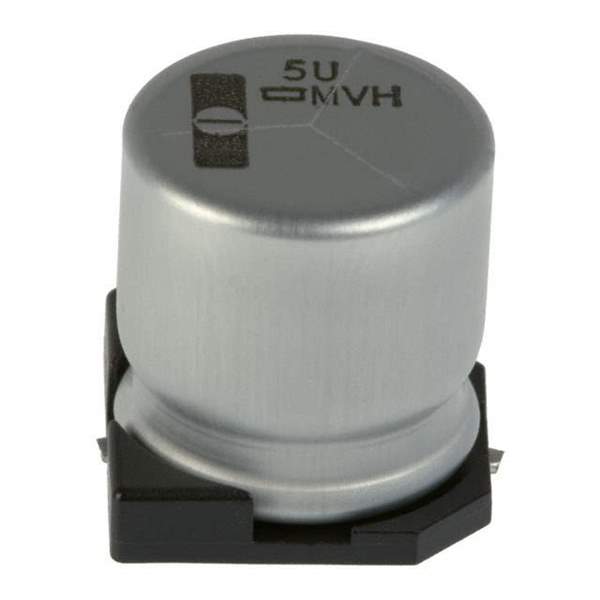

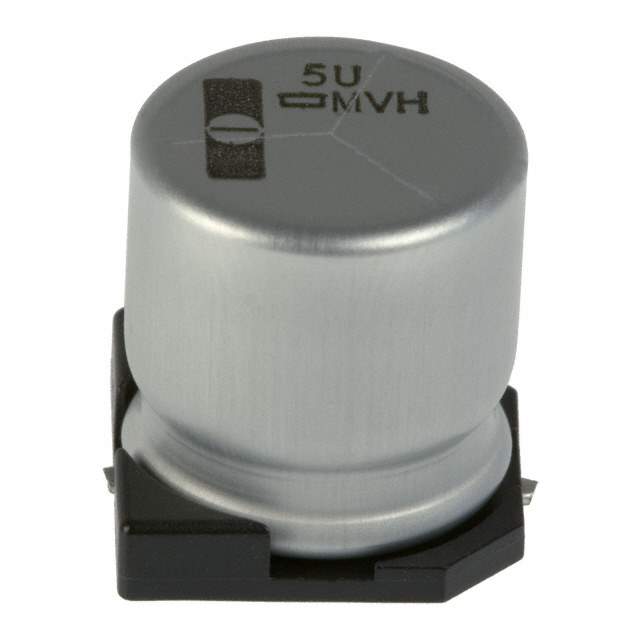

EMVH101ARA470MKE0S Real Image
Same model may have multiple batches, images only for reference.

EMVH101ARA470MKE0S

Part No EMVH101ARA470MKE0S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 100V SMD / 47 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 330mOhm @ 100kHz 5000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer United Chemi-Con
Packaging Reel - TR
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) 330mOhm @ 100kHz
Lifetime @ Temp. 5000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Applications Automotive
Ripple Current @ Low Frequency 180 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 100 kHz
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.531" (13.50mm)
Surface Mount Land Size 0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 565-2342-6,EMVH101ADA470MKE0S,565-2342-2,565-2342-1
Standard Package 250
Win Source Part Number 1330299-EMVH101ARA470MKE0S
Ultra Librarian 3D Model Ultra Librarian EMVH101ARA470MKE0S CAD Model

Description

The Alchip™- MVH series by United Chemi-Con is a 47 µF, 100 V aluminum electrolytic capacitor suitable for automotive applications.

  • Manufacturer: United Chemi-Con
  • Series: Alchip™- MVH
  • Capacitance: 47 µF
  • Voltage Rating: 100 V
  • Application: Automotive
  • Maximum Seated Height: 0.531" (13.50mm)
  • Surface Mount Land Size: 0.512" L x 0.512" W (13.00mm x 13.00mm)
  • ESR: 330mOhm @ 100kHz
  • Lifetime: 5000 Hrs @ 125°C
  • Model: EMVH101ARA470MKE0S
  • Package: Radial, can - SMD
  • Tolerance: ±20%
