Same model may have multiple batches, images only for reference.

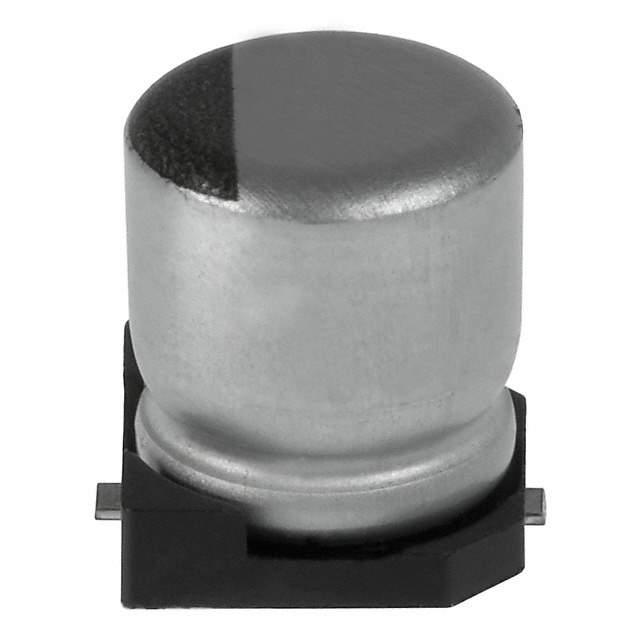

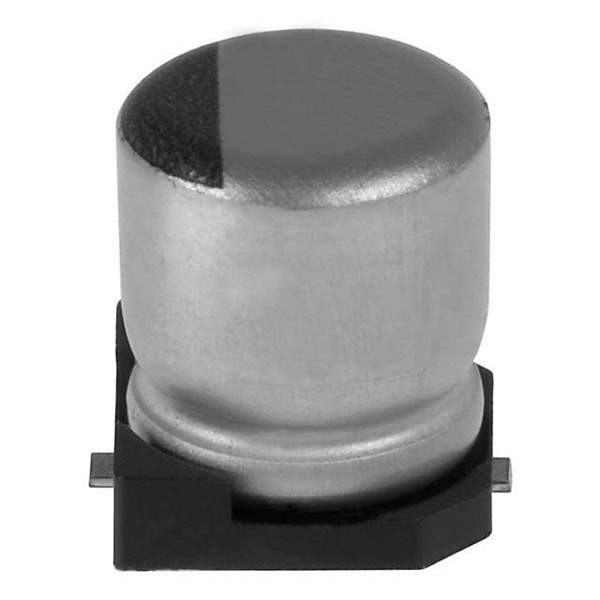

EMZA160ADA470ME61G Real Image
Same model may have multiple batches, images only for reference.

EMZA160ADA470ME61G

Part No EMZA160ADA470ME61G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 16V SMD / 47 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 64 mA @ 120 Hz
Ripple Current @ High Frequency 160 mA @ 100 kHz
Impedance 700 mOhms
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-2537-6,565-2537-2,565-2537-1
Standard Package 1,000
Win Source Part Number 1193018-EMZA160ADA470ME61G
Ultra Librarian 3D Model Ultra Librarian EMZA160ADA470ME61G CAD Model

Description

The EMZA160ADA470ME61G is an aluminum electrolytic capacitor from United Chemi-Con's Alchip™- MZA series.

  • Manufacturer: United Chemi-Con
  • Series: Alchip™- MZA
  • Capacitance: 47μF
  • Voltage Rating: 16V
  • Polarization: Polarized
  • Tolerance: ±20%
  • Impedance: 700mOhms
  • Ripple Current: 64mA @ 120Hz, 160mA @ 100kHz
  • Rating: AEC-Q200
  • Package / Case: Radial, Can - SMD
  • Height - Seated (Max): 0.240" (6.10mm)
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • RoHS Compliant: Yes
