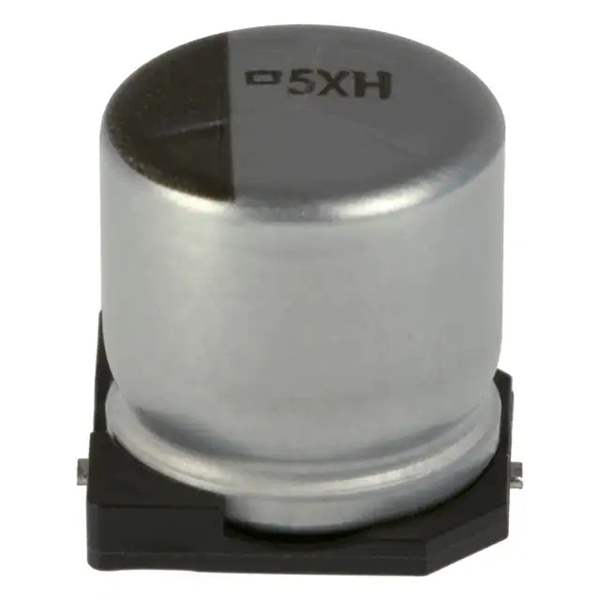

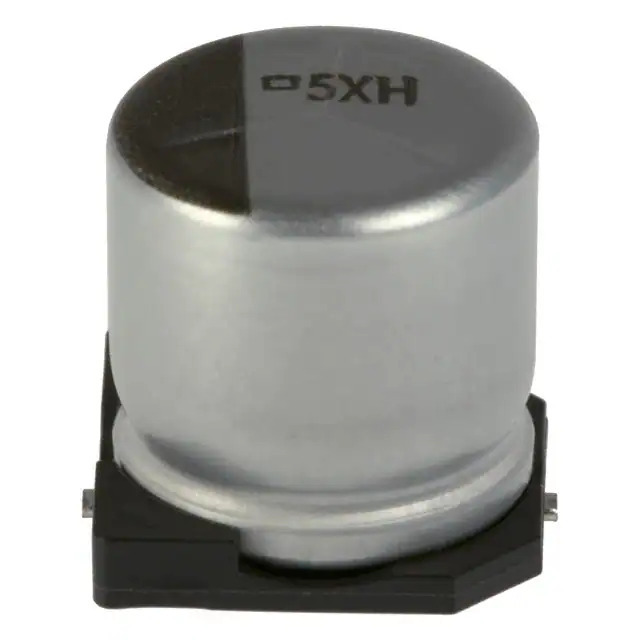

EMZA630ARA101MJA0G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMZA630ARA101MJA0G

Part No EMZA630ARA101MJA0G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 63V SMD / 100 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 160 mA @ 120 Hz
Ripple Current @ High Frequency 400 mA @ 100 kHz
Impedance 450 mOhms
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360301-EMZA630ARA101MJA0G
Ultra Librarian 3D Model Ultra Librarian EMZA630ARA101MJA0G CAD Model

Description

The 1360301-EMZA630ARA101MJA0G is an aluminum electrolytic capacitor from United Chemi-Con's Alchip™- MZA series.

  • Capacitance: 100 μF
  • Voltage Rating: 63 V
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 160 mA @ 120 Hz
  • Ripple Current (High Frequency): 400 mA @ 100 kHz
  • ESR: Not Specified
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Size: 0.394" diameter (10.00mm)
  • Seated Height: 0.413" (10.50mm)
  • AEC-Q200: Meets ratings
