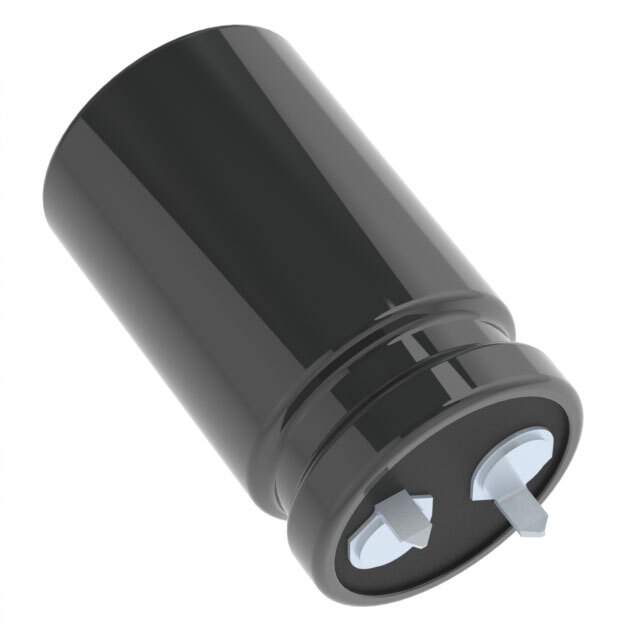

ESMH201VNN471MP35T Real Image
Same model may have multiple batches, images only for reference.

ESMH201VNN471MP35T

Part No ESMH201VNN471MP35T
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 200V SNAP / Cap Aluminum Lytic 470uF 200V 20% (22 X 35mm) Snap-In 10mm 0.353 Ohm 1780mA 2000h 85°C
Datasheet
ESMH201VNN471MP35T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series SMH
Packaging Bulk
Capacitance 470μF
Tolerance ±20%
Voltage Rating DC 200V
ESR (Equivalent Series Resistance) 353 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -25°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 1.78A @ 120Hz
Ripple Current - High Frequency 2.67A @ 100kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.866" Dia (22.00mm)
Height - Seated (Maximum) 1.457" (37.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 777893-ESMH201VNN471MP35T
Popularity Medium
Supply and Demand Status Balance
Family Name SM
Introduction Date May 06, 2007
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian ESMH201VNN471MP35T CAD Model

Description

The United Chemi-Con 716240 capacitor is a snap-in type capacitor in the SMH series.

  • Series: SMH
  • Capacitance: 470μF
  • Voltage Rating DC: 200V
  • Tolerance: ±20%
  • ESR: 353 mOhm @ 120Hz
  • Temperature Range: -25°C to 85°C
  • Lead Spacing: 0.394" (10.00mm)
  • Lifetime: 2000 Hrs @ 85°C
  • Applications: General
  • Package Type: Radial, Can - Snap-In
  • Supply and Demand Status: Balance
