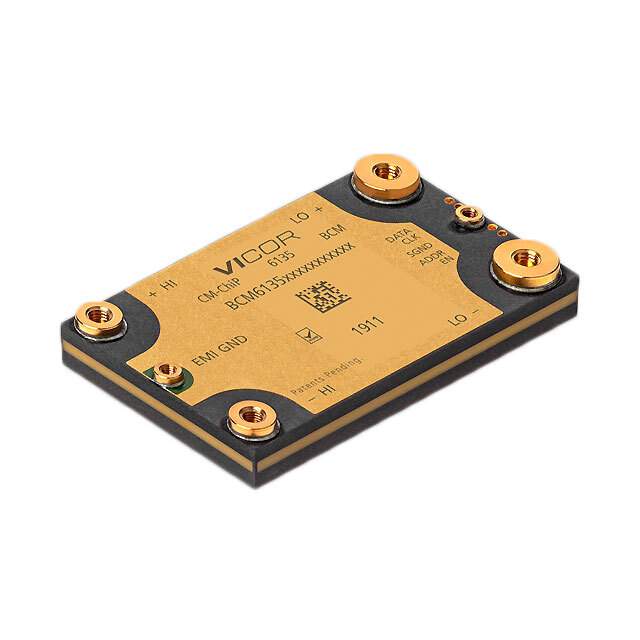

BCM6135CD1E5165T00 Real Image
Same model may have multiple batches, images only for reference.

BCM6135CD1E5165T00

Part No BCM6135CD1E5165T00
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 400V INPUT 1/8 6 / Bus Converter Module DC DC Converter 1 Output 48V 65A 260V - 410V Input
Datasheet
BCM6135CD1E5165T00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Vicor Corporation
Series BCM®
Package Tray
Type Bus Converter Module
Number of Outputs 1
Voltage - Input (Min) 260V
Voltage - Input (Max) 410V
Voltage - Output 1 48V
Current - Output (Max) 65A
Power (Watts) 3.12 kW
Voltage - Isolation 4.242 kV
Applications ITE (Commercial)
Features Heat Sink, PMBus™
Temperature Range - Operating -40°C ~ 125°C
Efficiency 97.8%
Mounting Type Chassis Mount
Package / Case Module
Dimension 2.41" L x 1.39" W x 0.29" H (61.3mm x 35.4mm x 7.4mm)
Approval Agency CE, cURus, TUV
Standard Number 60950-1; 62368-1
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1102-BCM6135CD1E5165T00
Standard Package 10
Win Source Part Number 1016494-BCM6135CD1E5165T00
Ultra Librarian 3D Model Ultra Librarian BCM6135CD1E5165T00 CAD Model

Description

BCM6135CD1E5165T00 is a bus converter module from Vicor Corporation that is designed to meet the power supply needs of ITE (Commercial) devices.

  • Series: BCM series
  • Package: Tray package
  • Power: 3.12 kW
  • Efficiency: 97.8%
  • Voltage Isolation: 4.242 kV
  • Maximum Output Current: 65A
  • Input Voltage Range: Between 260V and 410V
  • Output Voltage: 48V
  • ECCN: EAR99
  • REACH: Unaffected compliant
  • HTSUS: 8504.40.9580
  • MSL Level: Level 4 (72 Hours)
  • Approval: CE, cURus, and TUV
  • Application: Ideal for use in power supplies - board mount applications
