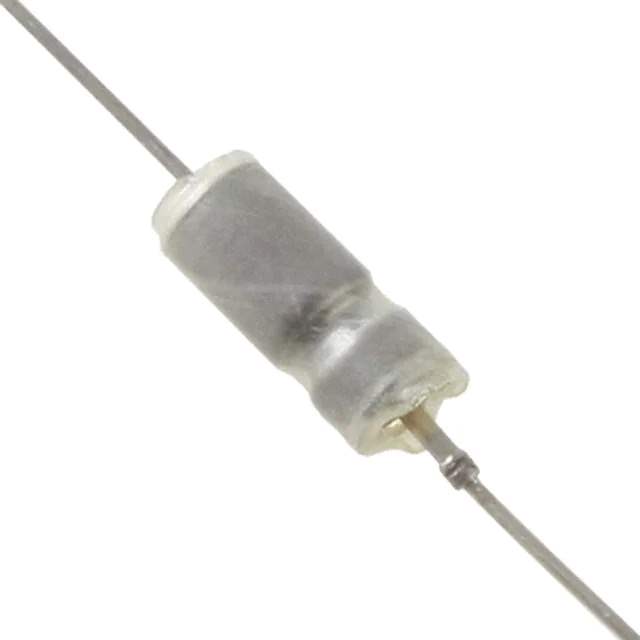

Same model may have multiple batches, images only for reference.

135D685X9125C6

Name: 135D685X9125C6
Brand: Vishay
SKU: 905282
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	135D685X9125C6
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 6.8UF 10% 125V AXIAL
Datasheet	135D685X9125C6 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Tantalum Capacitors
Mfr	Vishay
Series	135D
Package	Tray
Product Status	Active
Capacitance	6.8 µF
Tolerance	±10%
Voltage - Rated	125 V
Type	Hermetically Sealed
ESR (Equivalent Series Resistance)	11.7Ohm
Temperature Range - Operating	-55°C ~ 200°C
Mounting Type	Through Hole
Package / Case	Axial
Size / Dimension	0.203" Dia x 0.453" L (5.16mm x 11.51mm)
Manufacturer Size Code	C
Features	Wet Tantalum
Standard Package	1 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0020
Win Source Part Number	905282-135D685X9125C6
Ultra Librarian 3D Model	Ultra Librarian 135D685X9125C6 CAD Model

Alternative Products

Description

The 905282-135D685X9125C6 is a tantalum capacitor with a capacitance of 6.8 µF.

Capacitance: 6.8 µF
Series: 135D
Feature: Hermetically sealed
Package: Tray
Size: 0.203" diameter x 0.453" length (5.16mm x 11.51mm)
Voltage Rating: 125V
Tolerance: ±10%
ESR: 11.7 Ohm
Mounting Type: Through-hole
Package Style: Axial
Operating Temperature Range: -55°C to 200°C
Manufacturer: Vishay
Product Status: Active
