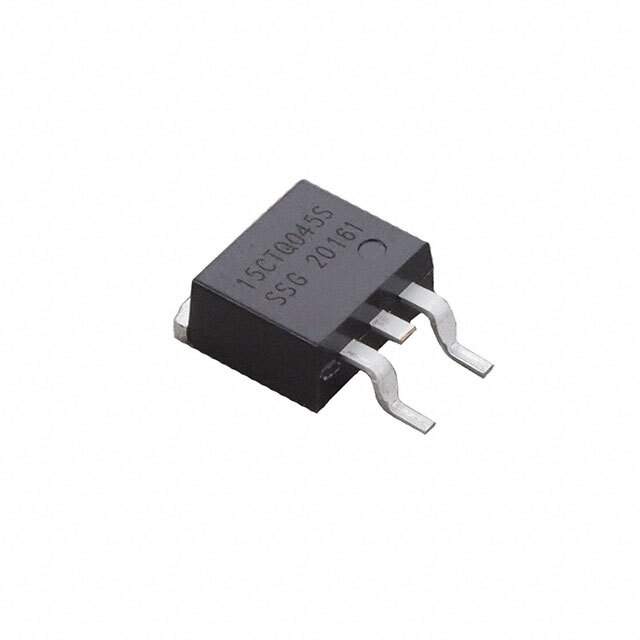

15CTQ045S Real Image
Same model may have multiple batches, images only for reference.

15CTQ045S

Part No 15CTQ045S
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE ARRAY SCHOTTKY 45V D2PAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) (per Diode) 7.5A
Voltage - Forward (Vf) (Maximum) at If 550mV at 7.5A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 800μA at 45V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Supplier Device Package D2PAK
Family Part Number 15CTQ045
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1121334-15CTQ045S
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 15CTQ045S CAD Model

Description

The Vishay Semiconductor Diodes Division 15CTQ045S is a pair of common cathode Schottky diodes that come in a D2PAK package. Vishay Semiconductor Diodes Division's 15CTQ045S is a pair of common cathode Schottky diodes that come in a D2PAK package.

  • Maximum Reverse Voltage: 45V
  • Average Rectified Current: 7.5A per diode
  • Fast Recovery Speed: 200mA
  • Operating Temperature Range: -55°C to 150°C
  • Market Status: Obsolete
  • Supply and Demand Status: Limited
  • Packaging: Tube
  • Manufacturer Pack Quantity: 1,000
  • Voltage Forward: 550mV @ 7.5A
  • Current Reverse Leakage: 800μA @ 45V
