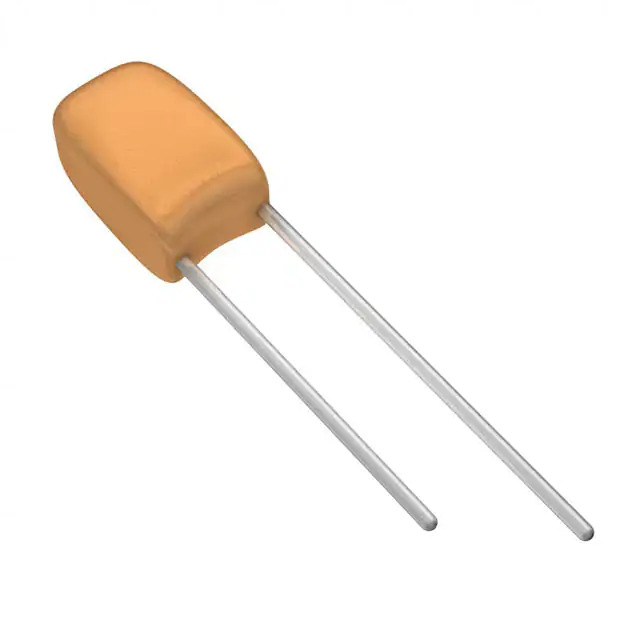

199D226X9025D1V1E3 Vishay
Same model may have multiple batches, images only for reference.

199D226X9025D1V1E3

Part No 199D226X9025D1V1E3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 22UF 10% 25V RADIAL / 22 µF Conformal Coated Tantalum Capacitors 25 V Radial
Datasheet
199D226X9025D1V1E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr Vishay Sprague
Series TANTALEX®, 199D
Package Bulk
Product Status Active
Capacitance 22 µF
Tolerance ±10%
Voltage - Rated 25 V
Type Conformal Coated
ESR (Equivalent Series Resistance) -
Temperature Range - Operating -55°C ~ 125°C
Lifetime @ Temp. 1000 Hrs @ 85°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.236" Dia (6.00mm)
Height - Seated (Max) 0.400" (10.16mm)
Lead Spacing 0.100" (2.54mm)
Manufacturer Size Code D
Features General Purpose
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0040
Win Source Part Number 1359777-199D226X9025D1V1E3
Ultra Librarian 3D Model Ultra Librarian 199D226X9025D1V1E3 CAD Model

Description

The Vishay Sprague TANTALEX® 199D capacitor is a high-quality tantalum capacitor with a capacitance of 22μF and a voltage rating of 25V. It features a conformal coated package and a tolerance of ±10%.

  • Series: TANTALEX® 199D
  • Capacitance: 22μF
  • Voltage Rating: 25V
  • Package Type: Conformal Coated
  • Tolerance: ±10%
  • Mounting Type: Through-Hole
  • Lifetime: 1000 hours @ 85°C
  • Package/Case: Radial
  • Lead Spacing: 0.100" (2.54mm)
  • Size/Dimension: 0.236" Dia (6.00mm)
  • Height (Seated): 0.400" (10.16mm)
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Product Status: Active
  • Application: General Purpose
