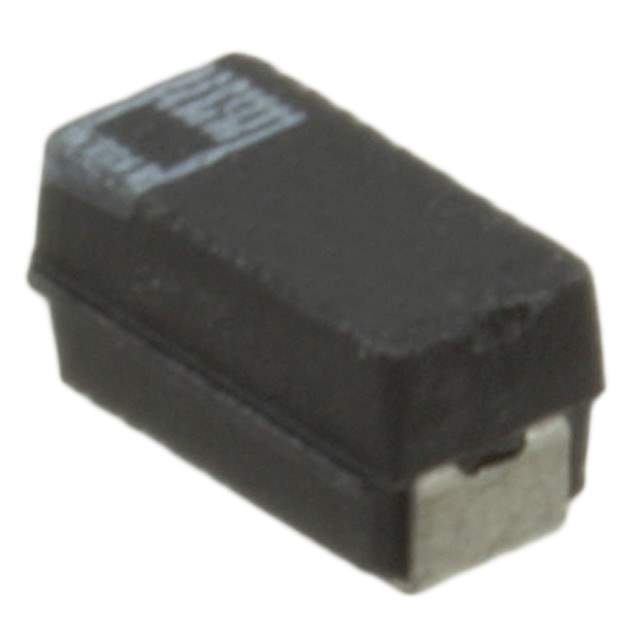

293D156X0010A2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D156X0010A2TE3

Part No 293D156X0010A2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 15UF 20% 10V 1206  /  15 µF Molded Tantalum Capacitors 10 V 1206 (3216 Metric) 2.9Ohm
Datasheet
293D156X0010A2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Vishay Sprague
Series TANTAMOUNT®, 293D
Package Tape & Reel (TR)
Capacitance 15 µF
Tolerance ±20%
Voltage - Rated 10 V
Type Molded
ESR (Equivalent Series Resistance) 2.9Ohm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.071" (1.80mm)
Manufacturer Size Code A
Features General Purpose
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Standard Package 2,000
Win Source Part Number 1192127-293D156X0010A2TE3
Ultra Librarian 3D Model Ultra Librarian 293D156X0010A2TE3 CAD Model

Description

The Vishay Sprague TANTAMOUNT® 293D156X0010A2TE3 is a molded tantalum capacitor with a capacitance of 15μF and a voltage rating of 10V.

  • Capacitance: 15μF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • ESR: 2.9 ohms
  • Lead-Free: yes
  • RoHS Compliant: yes
  • Package: 1206 (3216 Metric)
  • Packaging: tape and reel
  • Manufacturer Size Code: A
  • Temperature Range: -55°C to 125°C
  • REACH: unaffected
  • ECCN: EAR99
