Same model may have multiple batches, images only for reference.

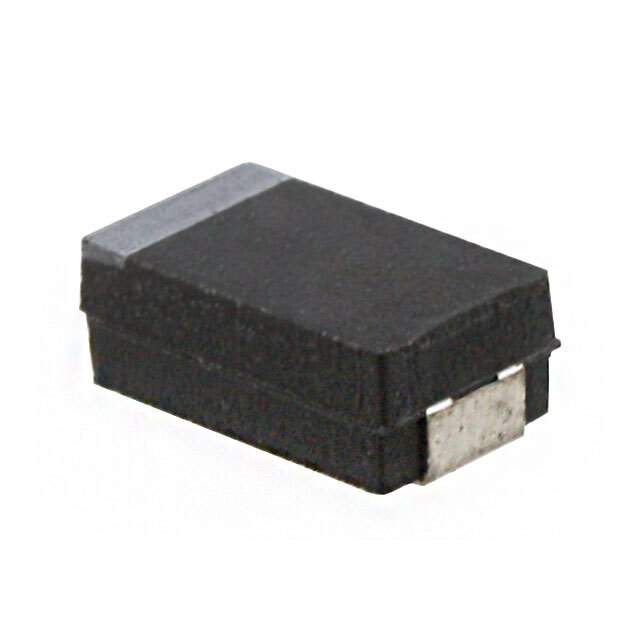

293D686X9020D2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D686X9020D2TE3

Part No 293D686X9020D2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 68UF 20V 10% 2917
Datasheet
293D686X9020D2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 68μF
Tolerance ±10%
Voltage Rating 20V
Type Molded
ESR 700 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Win Source Part Number 075306-293D686X9020D2TE3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 293D686X9020D2TE3 CAD Model

Description

Description

The 293D686X9020D2TE3 is an advanced capacitor celebrated for its efficiency and durability, designed to support varied electronic applications requiring stable capacitance and low ESR.

Features and Benefits

  • High capacitance in a compact package.
  • Low impedance for efficient power delivery.
  • Temperature tolerant for harsh environment operations.
  • Non-toxic materials ensure safe use.

Applications

  • Wireless communication devices.
  • Instrument panels in vehicles.
  • Advanced computing systems.
  • Renewable energy systems.

Additional Details

This component's design contributes to improved device lifespan and enhanced operational reliability, making it a staple in future-forward electronic systems.
