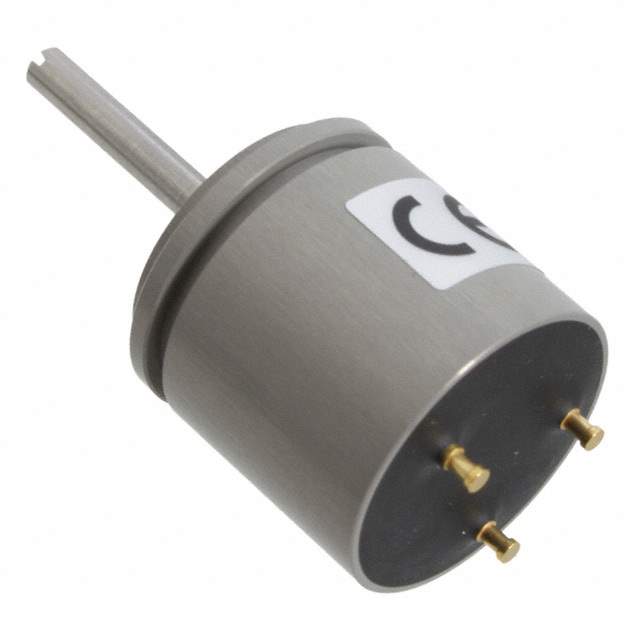

34THES2AWE2S22 Real Image
Same model may have multiple batches, images only for reference.

34THES2AWE2S22

Part No 34THES2AWE2S22
Manufacturer Vishay
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR HALL EFFECT SERVO MNT
Datasheet
34THES2AWE2S22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Status Active
For Measuring Rotary Position
Technology Hall Effect
Rotation Angle - Electrical, Mechanical 0° to 3600°, Continuous
Output Analog Voltage
Output Signal Clockwise Increase
Actuator Type Slotted Shaft
Linearity ±0.5%
Supply Voltage - Operating 5V
Mounting Panel Mount
Termination Style Wire Leads
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 1037018-34THES2AWE2S22
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 34THES2AWE2S22 CAD Model

Description

This electronic component is a product manufactured by Vishay.

  • Termination Style: Wire Leads
  • Mounting Type: Panel Mount
  • Technology: Hall Effect
  • Output Signal: Increases Clockwise
  • Output Type: Analog Voltage
  • Actuator Type: Slotted Shaft
  • Rotation Angle: 0° to 3600°, Continuous
  • Linearity: ±0.5%
  • Operating Temperature: -40°C to 85°C
  • Voltage - Supply: 5V
