Same model may have multiple batches, images only for reference.

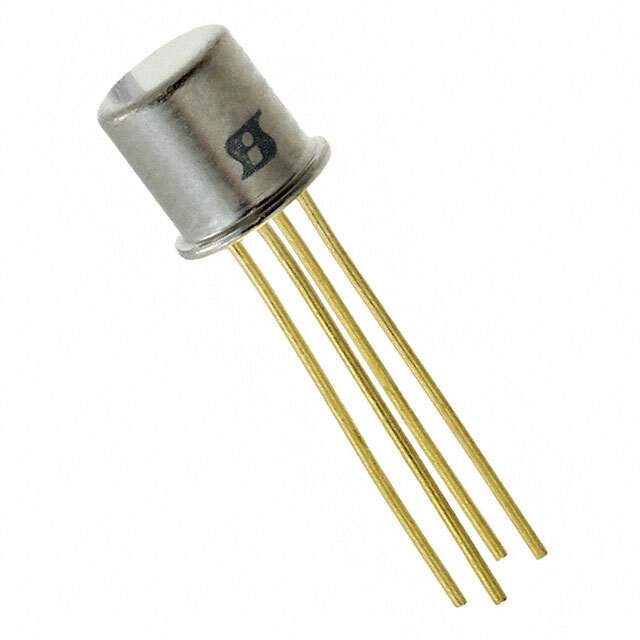

3N163 Real Image
Same model may have multiple batches, images only for reference.

3N163

Part No 3N163
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 40V 50MA TO-72
Datasheet
3N163 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 50mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 20V
Gate-Source Threshold Voltage 5V @ 10μA
Max Input Capacitance 3.5pF @ 15V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 375mW (Ta)
Maximum Rds On at Id,Vgs 250 Ohm @ 100μA, 20V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-72
Dimension TO-206AF, TO-72-4 Metal Can
Win Source Part Number 006139-3N163
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3N163 CAD Model

Description

The 3N163 is a reliable N-channel MOSFET designed to maximize efficiency and minimize loss. Its robust design ensures stability in various electronic environments.

Applications

  • Amplifiers
  • RF Circuits
  • Power Management
  • Automotive Electronics

Features and Benefits

  • Low drain-source on resistance
  • Fast-switching for reduced delay
  • Durable construction
  • Ideal for high-frequency applications

This MOSFET is optimized for performance and stability, making it suitable for both consumer and automotive electronics.
