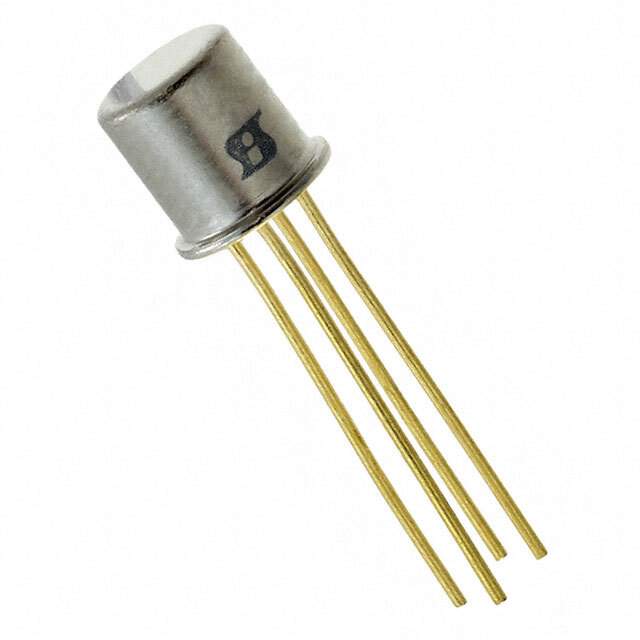

3N164 Real Image
Same model may have multiple batches, images only for reference.

3N164

Part No 3N164
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 50MA TO-206AF
Datasheet
3N164 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Obsolete(EOL)
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 50mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 20V
Gate-Source Threshold Voltage 5V @ 10μA
Max Input Capacitance 3.5pF @ 15V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 375mW (Ta)
Maximum Rds On at Id,Vgs 300 Ohm @ 100μA, 20V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-72
Dimension TO-206AF, TO-72-4 Metal Can
Win Source Part Number 197695-3N164
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3N164 CAD Model

Description

The 3N164 N-channel MOSFET offers low on-resistance and high-speed switching, perfectly suited for a wide variety of demanding applications.

Applications

  • Switch-Mode Power Supplies
  • Electric Vehicles
  • Solar Inverters
  • Uninterruptible Power Supplies (UPS)

Features and Benefits

  • High efficiency and low power dissipation
  • Rapid switching to optimize performance
  • Effective thermal control
  • Compact design

Designed for applications requiring high efficiency and reliability, the 3N164 MOSFET excels in minimizing energy loss.
