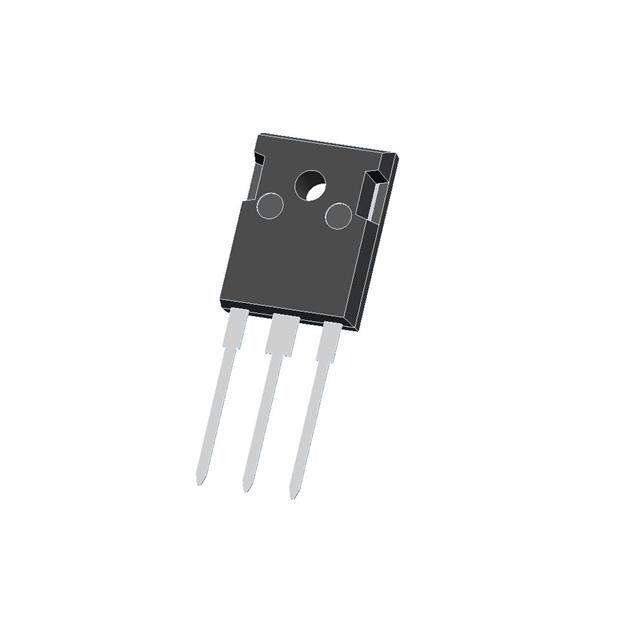

40CPQ060 Real Image
Same model may have multiple batches, images only for reference.

40CPQ060

Part No 40CPQ060
Manufacturer Vishay
Catalog HOT - SALES and EOL Components
Description SCHOTTKY RECTIFIER | DIODE ARRAY SCHOTTKY 60V TO247AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 60V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Maximum) at If 530mV at 20A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1.7mA at 60V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-247-3
Supplier Device Package TO-247AC
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 075778-40CPQ060
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 40CPQ060 CAD Model

Description

40CPQ060 Schottky Rectifier

The 40CPQ060 Schottky Rectifier provides outstanding performance in high-efficiency applications. This diode is recognized for its low forward voltage drop and high-reliability features, suitable for use in consumer electronics, automotive, and telecommunications.

  • Applications:
    • Consumer electronics
    • Automotive systems
    • Telecommunication power infrastructure
    • AC/DC adapters
  • Features and Benefits:
    • Low reverse leakage current
    • High-temperature performance
    • Durable construction for extended product life

Integrate the 40CPQ060 in your next project for reliable performance and reduced power loss.
