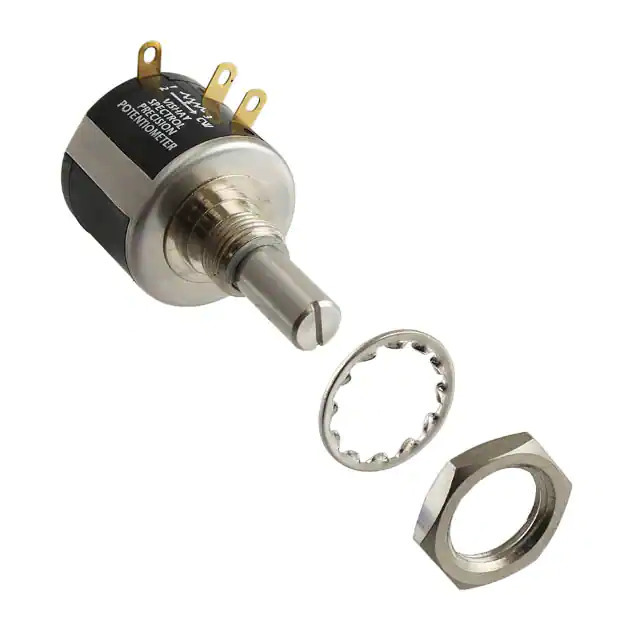

534B1103JC Vishay
Same model may have multiple batches, images only for reference.

534B1103JC

Part No 534B1103JC
Manufacturer Vishay
Catalog Rotary Potentiometers, Rheostats
Description POT 10K OHM 2W WIREWOUND LINEAR
Datasheet
534B1103JC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Rotary Potentiometers, Rheostats
Mfr Vishay Spectrol
Series 534
Package Bulk
Product Status Active
Resistance (Ohms) 10k
Tolerance ±5%
Power (Watts) 2W
Built in Switch None
Number of Turns 10
Features -
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient 20ppm/°C
Rotation 3600°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.812" (20.63mm)
Actuator Diameter 0.2497" (6.34mm)
Bushing Thread 3/8-32
Mounting Type Panel Mount
Size - Body Round - 0.875" Dia (22.23mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.31.0000
Win Source Part Number 1375102-534B1103JC
Ultra Librarian 3D Model Ultra Librarian 534B1103JC CAD Model

Description

The Vishay Spectrol 534B1103JC is a panel mount rotary potentiometer with a resistance of 10k Ohms and a power rating of 2W.

  • Taper: Linear
  • Turns: 10
  • Actuator: Slotted
  • Termination Style: Solder Lug
  • Temperature Range: -55°C to 125°C
  • Temperature Coefficient: 20ppm/°C
