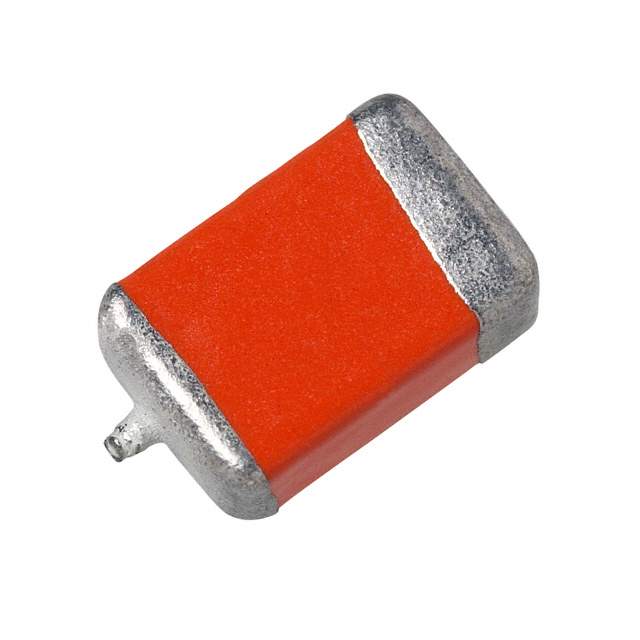

594D226X0020B2T Real Image
Same model may have multiple batches, images only for reference.

594D226X0020B2T

Part No 594D226X0020B2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 22UF 20V 20% 1611
Datasheet
594D226X0020B2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±20%
Voltage Rating 20V
Type Conformal Coated
ESR 600 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.157" L x 0.110" W (4.00mm x 2.80mm)
Height - Seated (Max) 0.087" (2.20mm)
Manufacturer Size Code B
Features General Purpose
Win Source Part Number 097771-594D226X0020B2T
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 594D226X0020B2T CAD Model

Description

Description

The 594D226X0020B2T represents a versatile and reliable option in the world of solid tantalum capacitors. Its design focuses on delivering stable and efficient performance in various electronic assemblies.

Features and Benefits

  • Stable capacitance over extended temperature ranges
  • Low ESR for enhanced circuit performance
  • Durable design for long service life

Applications

  • Automotive electronics
  • Industrial control systems
  • Networking equipment

The 594D226X0020B2T is particularly well-suited to environments where space is at a premium, offering reliable and stable performance across a range of conditions.
