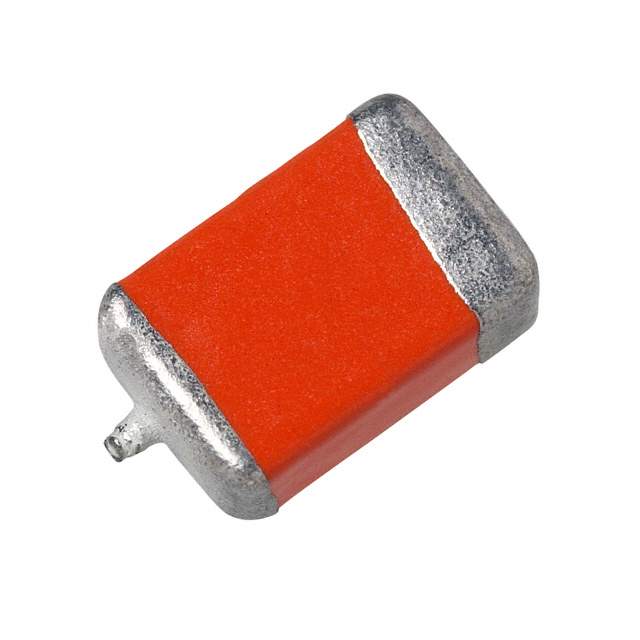

594D686X9025R2T Real Image
Same model may have multiple batches, images only for reference.

594D686X9025R2T

Part No 594D686X9025R2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 68UF 10% 25V 2824
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Sprague
Packaging Reel
Capacitance 68μF
Tolerance ±10%
Voltage - Rated 25V
Type Conformal Coated
ESR (Equivalent Series Resistance) 95mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 2824 (7260 Metric)
Dimension 0.283" L x 0.236" W (7.20mm x 6.00mm)
Height - Seated (Maximum) 0.148" (3.75mm)
Manufacturer Size Code R
Features General Purpose
Manufacturer Pack Quantity 600
MSL Level 2A (4 Weeks)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812687-594D686X9025R2T
Ultra Librarian 3D Model Ultra Librarian 594D686X9025R2T CAD Model

Description

The 594D686X9025R2T is a conformal coated capacitor from Vishay Sprague with a capacitance of 68μF.

  • Capacitance: 68μF
  • Tolerance: ±10%
  • Voltage Rating: 25V
  • ESR: 95mOhm
  • Package: 2824 (7260 Metric)
  • Dimensions: 0.283" L x 0.236" W (7.20mm x 6.00mm)
  • Mounting Style: SMD
  • Maximum Seated Height: 0.148" (3.75mm)
  • Operating Temperature: -55°C ~ 125°C
  • Supply and Demand Status: Limited
  • MSL Level: 2A (4 weeks)
  • Manufacturer Pack Quantity: 600
