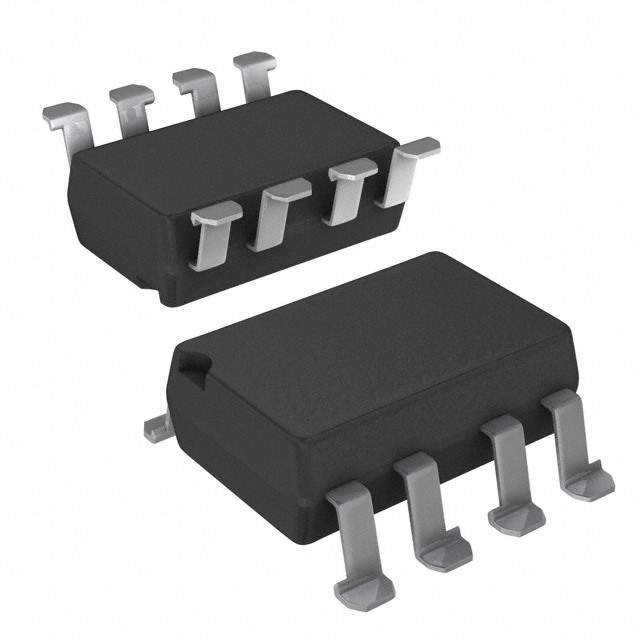

6N135-X007 Real Image
Same model may have multiple batches, images only for reference.

6N135-X007

Part No 6N135-X007
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description High Speed Optocoupler, 1 MBd, Phtotdiode with Transistor Output | OPTOISO 5.3KV TRANS W/BASE 8DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Minimum) 7% at 16mA
Turn On / Turn Off Time 300ns, 300ns
Input Type DC
Output Type Transistor with Base
Maximum Output Voltage 15V
Current - Output / Channel 8mA
Voltage - Forward (Vf) 1.33V
Current - DC Forward (If) (Maximum) 25mA
Temperature Range - Operating -55°C ~ 100°C
Mounting Style Through Hole
Manufacturer Package 8-DIP
Supplier Device Package 8-DIP
Family Part Number 6N135
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 1129658-6N135-X007
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 6N135-X007 CAD Model

Description

The 6N135-X007 is an optocoupler manufactured by Vishay Semiconductor Opto Division.

  • Supply and Demand: Balanced
  • Applications: Power supplies, motor control, and other electronic devices
  • Features: High isolation voltage, low input current, and fast response time
  • RoHS Compliant: Yes
