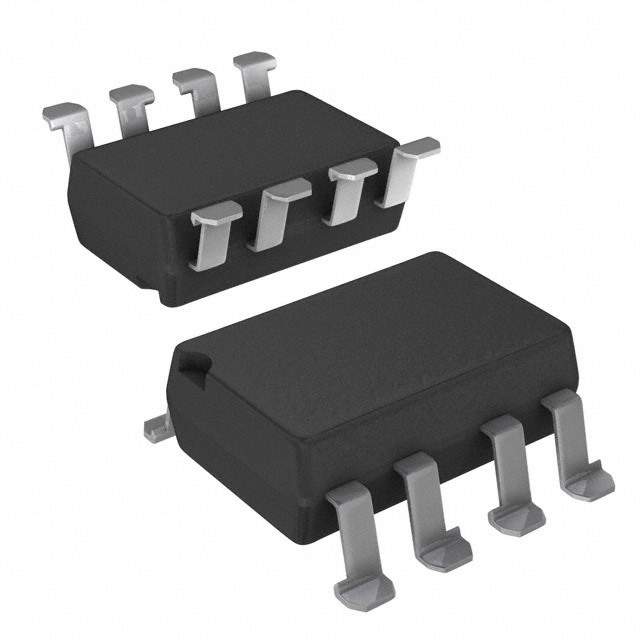

6N135-X007T Real Image
Same model may have multiple batches, images only for reference.

6N135-X007T

Part No 6N135-X007T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV TRANS W/BASE 8DIP
Datasheet
6N135-X007T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5300Vrms
Minimum DC Current Transfer Ratio 7% @ 16mA
Switching Turn-On and Turn-Off Time 300ns, 300ns
Input Type DC
Maximum Output Voltage 15V
Channel Output Current 8mA
Forward Voltage 1.33V
Continuous forward current- Max 25mA
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 1006812-6N135-X007T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 6N135-X007T CAD Model

Description

The 6N135-X007T from Vishay is an optocoupler that offers a single channel and DC input type.

  • Channel: single
  • Input Type: DC
  • Minimum DC Current Transfer Ratio: 7% @ 16mA
  • Continuous Forward Current: up to 25mA
  • Isolation Voltage: 5300Vrms
  • Maximum Output Voltage: 15V
  • Package: 8-DIP
  • Temperature Range: -55°C to 100°C
  • Switching Turn-On Time: 300ns
  • Switching Turn-Off Time: 300ns
  • Application: isolator
  • Status: active
  • Popularity: medium popularity
  • Supply and Demand Status: balanced
