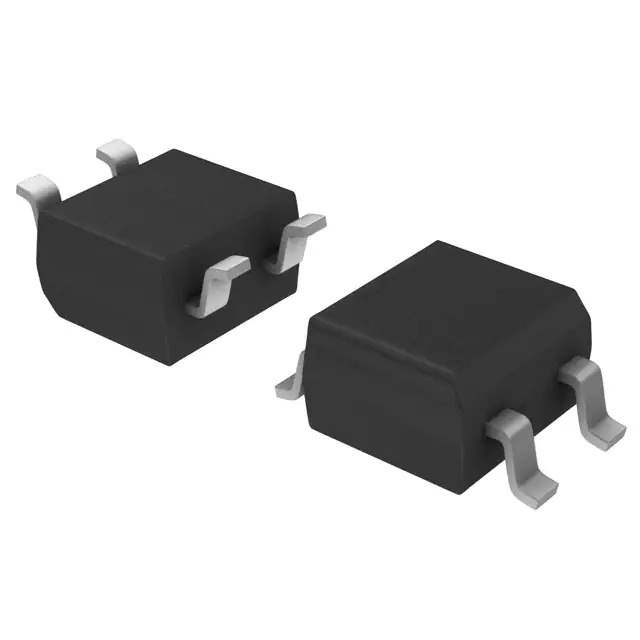

B4S-E3/80 Real Image
Same model may have multiple batches, images only for reference.

B4S-E3/80

Part No B4S-E3/80
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 400V TO269AA / Bridge Rectifier Single Phase Standard 400 V Surface Mount TO-269AA (MBS)
Datasheet
B4S-E3/80 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 500 mA
Current - Reverse Leakage @ Vr 5 µA @ 400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Supplier Device Package TO-269AA (MBS)
Base Product Number B4S
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 845875-B4S-E3/80
Ultra Librarian 3D Model Ultra Librarian B4S-E3/80 CAD Model

Description

The 845875-B4S-E3/80 is a single-phase bridge rectifier diode from Vishay. It is designed for use in discrete semiconductor products and belongs to the category of bridge rectifiers.

  • Type: Bridge Rectifier Diode
  • Maximum Forward Voltage: 1 V @ 500 mA
  • Maximum Peak Reverse Voltage: 400 V
  • Reverse Leakage Current: 5 µA @ 400 V
  • Mounting: Surface Mount
  • Package: TO-269AA
  • Configuration: 4-BESOP
  • Supplier Device Package: TO-269AA (MBS)
  • Operating Temperature Range: -55°C to 150°C
  • Status: Active
  • REACH: Not Affected
