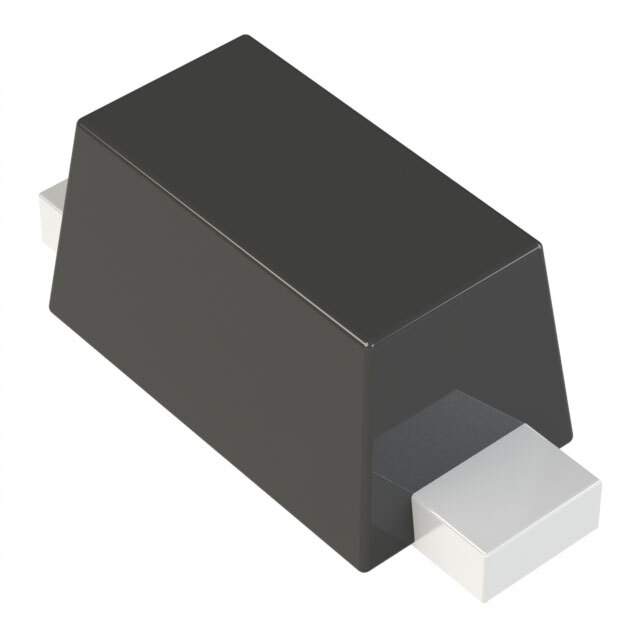

BAS40-02V-V-G-08 Real Image
Same model may have multiple batches, images only for reference.

BAS40-02V-V-G-08

Part No BAS40-02V-V-G-08
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 120MA SOD523 / Small Signal Schottky Diode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) 120mA (DC)
Voltage - Forward (Vf) (Maximum) at If 380mV at 1mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage at Vr 100nA at 30V
Capacitance at Vr, F 5pF at 0V, 1MHz
Mounting Style SMD
Manufacturer Package SC-79, SOD-523
Supplier Device Package SOD-523
Operating Temperature - Junction -55°C ~ 125°C
Part Number Series BAS40-02
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808291-BAS40-02V-V-G-08
Ultra Librarian 3D Model Ultra Librarian BAS40-02V-V-G-08 CAD Model

Description

The BAS40-02V-V-G-08 is a Schottky Diode from Vishay Semiconductor Diodes Division.

  • Diode Type: Schottky
  • Current Average Rectified (Io): 120mA (DC)
  • Packaging: SMD
  • Mounting Style: SMD (SMT)
  • Voltage Forward (Vf): Maximum 380mV @ 1mA
  • Voltage DC Reverse (Vr): Maximum 40V
  • Reverse Recovery Time (trr): 5ns
  • Capacitance @ Vr, F: 5pF @ 0V, 1MHz
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 3,000
