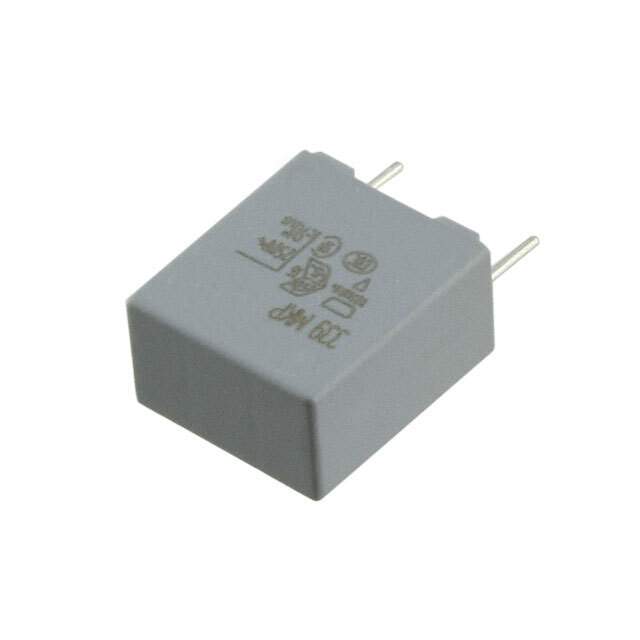

The Vishay Beyschlag/Draloric/BC Components 1156831-BFC233920333 is a film capacitor from the MKP339 series.

• Application: It is designed for use in automotive and EMI, RFI suppression applications.
• Capacitance/Tolerance: The capacitor has a capacitance of 0.033 µF and a tolerance of ±20%.
• Voltage Rating: Its voltage rating is 310V AC and 630V DC.
• Dielectric Material: The dielectric material used in this capacitor is polypropylene (PP), metallized.
• Mounting/Package: It has a through-hole mounting type and a radial package/case.
• Height/Spacing: The capacitor has a height of 0.354" (9.00mm) when seated and a lead spacing of 0.295" (7.50mm).
• Ratings: It is rated AEC-Q200 and X2.
• Temperature Range: The Vishay Beyschlag/Draloric/BC Components 1156831-BFC233920333 has a temperature range of -55°C to 110°C.
• Dimensions: The dimensions of this capacitor are 0.394" L x 0.157" W (10.00mm x 4.00mm).
• Compliance: It is ECCN EAR99 compliant and has an MSL level of 1 (Unlimited).
