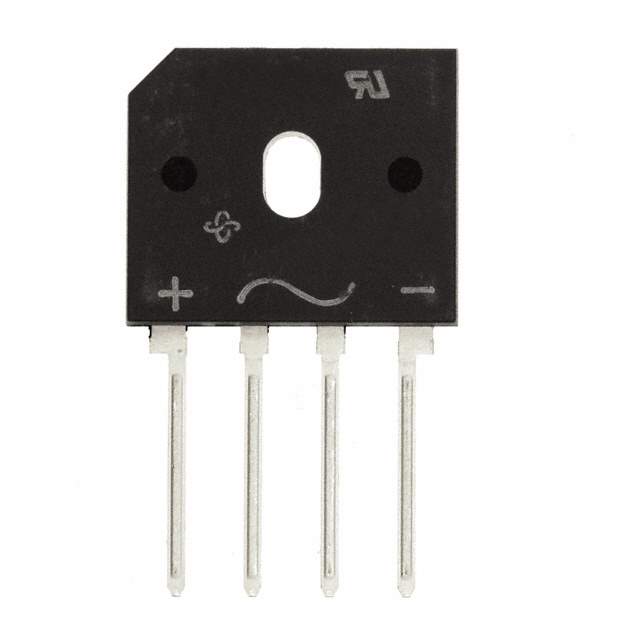

BU2506-E3/51 Real Image
Same model may have multiple batches, images only for reference.

BU2506-E3/51

Part No BU2506-E3/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description Enhanced isoCink Bridge Rectifiers
Datasheet
BU2506-E3/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tray
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 3.5A
Voltage - Forward (Vf) (Maximum) @ If 1.05V @ 12.5A
Current - Reverse Leakage @ Vr 5μA @ 600V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, BU
Manufacturer Package isoCINK+ BU
Win Source Part Number 1155698-BU2506-E3/51
Manufacturer Homepage www.vishay.com
Family Name BU2506-E3
Introduction Date May 06, 2008
ECCN EAR99
Country of Origin China
Estimated EOL Date 2030
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BU2506-E3/51 CAD Model

Description

The Vishay Semiconductor Diodes Division BU2506-E3/51 is a single-phase diode type that is mounted through a hole.

  • Voltage Peak Reverse: 600V
  • Current Average Rectified: 3.5A
  • Voltage Forward: 1.05V @ 12.5A
  • Current Reverse Leakage: 5μA @ 600V
  • Package: 4-SIP, BU
  • Technology: Standard
  • Packaging: Tray
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Popularity: Popular
  • Supply and Demand Status: Balance
