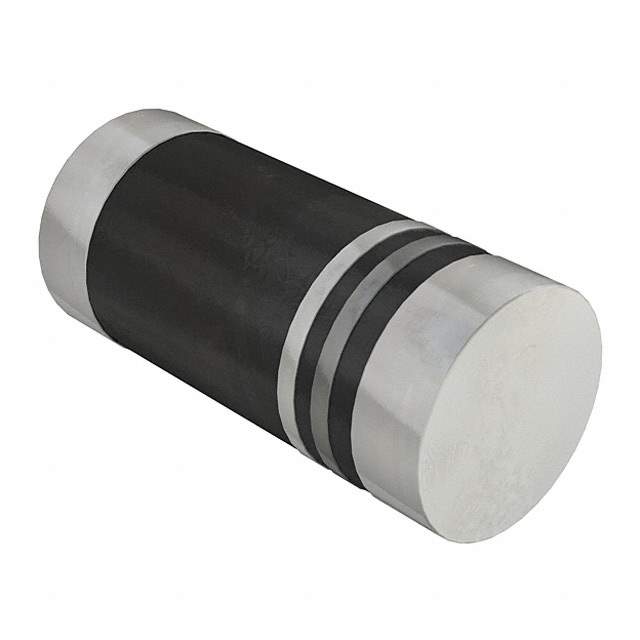

Same model may have multiple batches, images only for reference.

BYM07-100-E3/83

Name: BYM07-100-E3/83
Brand: Vishay
SKU: 967152
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	BYM07-100-E3/83
Manufacturer	Vishay
Catalog	Diodes, Rectifiers - Single
Description	DIODE GEN PURP 100V 500MA DO213 / Diode Standard 100 V 500mA Surface Mount DO-213AA (GL34)
Datasheet	BYM07-100-E3/83 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Vishay General Semiconductor - Diodes Division
Series	SUPERECTIFIER®
Package	Tape & Reel (TR)
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100 V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	1.25 V @ 500 mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50 ns
Current - Reverse Leakage @ Vr	5 µA @ 100 V
Capacitance @ Vr, F	7pF @ 4V, 1MHz
Mounting	SMD (SMT)
Package / Case	DO-213AA (Glass)
Supplier Device Package	DO-213AA (GL34)
Operating Temperature - Junction	-65°C ~ 175°C
Base Product Number	BYM07
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0070
Standard Package	9,000
Win Source Part Number	967152-BYM07-100-E3/83
Ultra Librarian 3D Model	Ultra Librarian BYM07-100-E3/83 CAD Model

Alternative Products

Description

This electronic component is a product from Vishay General Semiconductor - Diodes Division and its Win Source Part Number is 967152-BYM07-100-E3/83.

Product Type: fast recovery diode
Forward Voltage: 1.25 V @ 500 mA
Reverse Recovery Time: 50 ns
DC Reverse Voltage: 100 V
Average Rectified Current: 500 mA
Package: Tape & Reel (TR)
Standard Package: 9,000
Capacitance: 7pF @ 4V, 1MHz
Operating Temperature Range: -65°C to 175°C
