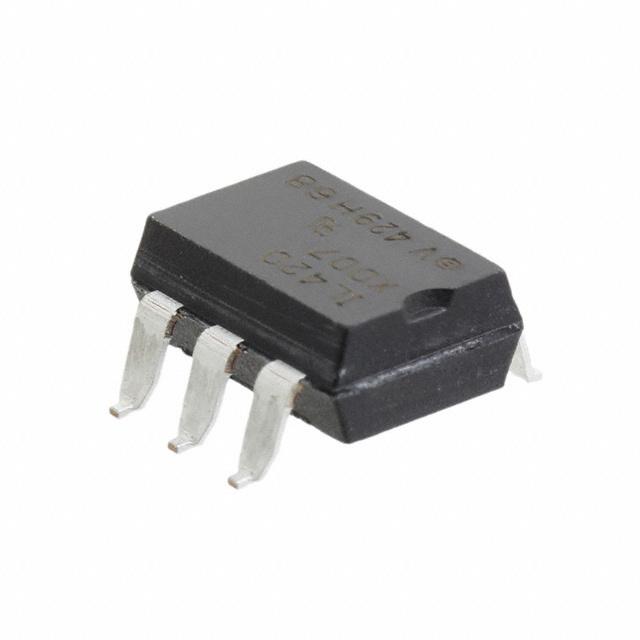

CNY17F-4X007

Part No CNY17F-4X007
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler, Phototransistor Output, No Base Connection
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 160% @ 10mA
Current Transfer Ratio (Maximum) 320% @ 10mA
Turn On / Turn Off Time (Typ) 3ÎĽs, 2.3ÎĽs
Rise / Fall Time (Typ) 2ÎĽs, 2ÎĽs
Input Type DC
Output Type Transistor
Output Voltage MAX 70V
Output Current per Channel 50mA
Voltage - Forward (Vf) (Typ) 1.39V
Current - DC Forward (If) (Maximum) 60mA
Vce Saturation (Maximum) 400mV
Operating Temperature Range -55°C ~ 110°C
Mounting SMD
Package 6-SMD, Gull Wing
Manufacturer Package 6-SMD
Win Source Part Number 1162663-CNY17F-4X007
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name CNY17F
Introduction Date September 12, 2001
ECCN EAR99
Estimated EOL Date 2022
Win Source Part Number CNY17F-3S(TA);  CNY17F-4S(TA);  CNY17F-1S(TA);

Description

The CNY17F-4X007 is a surface mount optocoupler from Vishay Semiconductor Opto Division. It is designed to provide galvanic isolation between two circuits, while allowing for the transfer of signals between them. The CNY17F-4X007 has a maximum output voltage of 70 V and a maximum output current of 50 mA.
